Auto splitter

With this new detailing component you can generate splitters that split long bars in rebar sets so that the bars do not exceed the stock length.

Corbels and recesses (82)

On the Configuration tab, there is a new setting, Cutout parts in cast unit, where you can define the class or name of the cast unit parts that are avoided when corbels or recesses go through the parts.

Embedded anchors (008)

On the Advanced tab, you can now select in the Include reinforcement in COG setting whether the weight of the reinforcement in the cast unit is included in the COG calculation.

Edge and corner reinforcement (62)

On the Edge bars tab, there is a new setting where you can select to create either a group of multiple edge bars with a specific cover thickness or a single edge bar group in the middle of the part.

Hole reinforcement for slabs and walls (84)

On the Edge bars tab, you can now manage the creation of edge bars on each side of the hole separately and define their length.

Longitudinal reinforcement (70)

On the Parameters tab, you can now use the Ignore cuts, Cut class, and Cut name options to define whether the bars are cut and which cuts are ignored.

Mesh bars, Mesh bars by area

On the Splicing tab, you can now select a new non-symmetrical option for Splicing symmetry that allows you to place the short bar on the right hand side.

Rectangular column reinforcement (83)

On the Bar ends tab, you can now define the cranking dimensions separately for corner bars and side bars.

Reinforced concrete stair (95)

• On the tabs for the bars C, D, E, G, and K, you can now define a comment and a name for the additional bars.

• On the Bar H tab, you can now define spacing and the start/end offsets separately for the top and bottom bars.

Seating with dowel (75)

When creating nuts, you can now define if the nut will be a polygon type or a beam type with a profile.

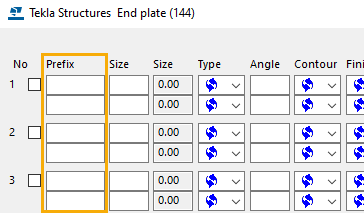

Weld prefixes for steel components

You can now define weld prefixes for above and below line welds in the welds dialog for steel components. Previously, you could only define the prefixes in the property pane.

Apex haunch (106)

You can now create galvanizing holes on the Holes tab.

Base plate (1004)

On the Anchor rods tab, you can now define the assembly position number for the plate washer.

Base plate (1004), Stiffened base plate (1014), Web stiffened base plate (1016), Base plate (1042), U.S. Base plate (1047), Circular base plates (1052), Tapered column base plate (1068)

• The cast unit type of the grout is now Cast in place.

• On the Anchor rods tab, you can now define the gap between the base plate and nut or washer created above the base plate.

• A new anchor rod type which enables specific UDAs to be reported with anchor rod objects or with base plate objects has been added to base plate components. Inquiring anchor rod objects from these base plate components will report UDA values for: RodSize, RodMaterial, and EmbedmentThickness.

Beam with stiffener (129), Full depth (184), Full depth S (185)

It is now possible to use separate welds for the stiffener plate and the shear tab.

Bolted gusset (11), Tube gusset (20), Gusseted cross (62)

On the Picture tab, you can now define the gusset plate extension dimension from the opposite face when the gusset runs through the main part.

Bolted gusset (11), Seating (30), Haunch (40), Splice connection (77), End plate (101), End plate with compensating flange plates (111), Stub (119), Clip angle (141), Two sided clip angle (143), Shear plate simple (146)

• On the Bolts tabs, you can now define a bolt comment.

• On the Bolts tabs, Bolt comment has been replaced with Comment.

Bolted gusset (196), L splice (175)

• You can now define the Finish property for all parts.

• You can now define the Class property for all parts.

Bolted moment connection (134)

• You can now define the Finish property for all parts.

• On the Flange plates tab, you can now select in the new Are weld preparations required setting whether to create weld preparation polygon cuts.

Built up box (S6)

You can now define the batten placement in a similar way to the lacing placement on the Parameters tab.

Cage ladder (S60)

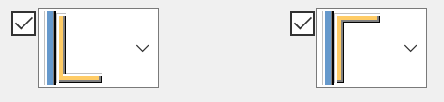

• On the Cage tab, you can now define the length projection of the vertical bars when the cage is created with the left or right step type.

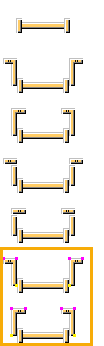

• On the Cage tab, there is a new O type hoop that creates hoops at the inside face of the stringers.



• On the new Anchor rods tab, you can now define whether bolts or custom components are used as anchors.

• On the Supports tab, you can now select to create backside supports as polybeams.



Clip angle (141), Two sided clip angle (143)

Seat angle can now also be created when the components are used in beam-to-beam type connections.

Column tube seating (100)

You can now define more than one row of bolts.

Gusseted cross (62), Corner wrapped gusset (63)

On the Brace conn tab, you can now define the bolt main part for the L profile or plate connection gusset to the bracing.

Doubler plate (1022)

When you now define 0.0 as the hole diameter value on the Doubler plate tab, no hole is created.

End plate (29)

You can now create galvanizing holes in the end plates on the new Holes tab.

End plate (101), End plate with compensating flange plates (111)

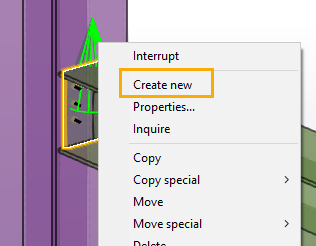

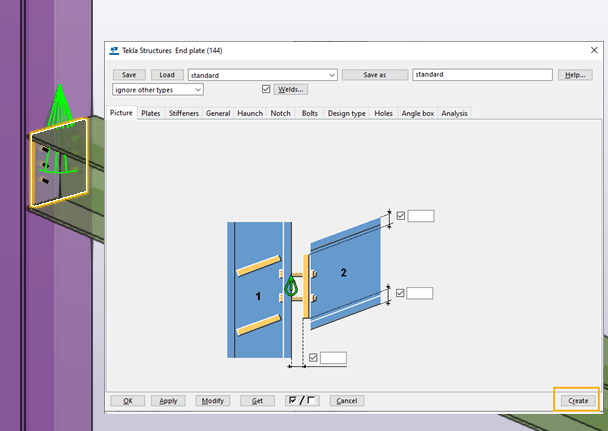

End plate (144)

On the Plates tab, you can now define whether a seat plate is created under the end plate. The seat plate is created when you define a thickness for the plate.

Handrailing (1024)

On the Parts tab, you can now define if the toe plate is created as a plate or as a beam with a specific profile.

Haunch (40)

On the Extra plates tab, you can now define the horizontal offset of the upper and lower bolt plates on the left and right side.

Joining plates (14)

On the Parts tab, you can now select in Place plates centered whether plates are created as centered to the connection origin point.

2-Sided joist to column (162)

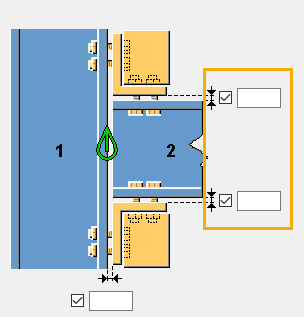

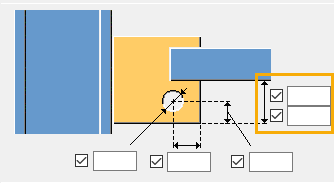

On the Stabilizer tab, you can now define separate vertical offsets for the near side and far side stabilizer plates.

Joist to column, type 1 (161), 2-Sided joist to column (162)

On the Parts tab, you can now define that stiffeners are created under the cap plate.

Joist to column, type 2 (163)

On the Seat tab, you now create chamfers for the vertical plate and define the dimensions when you have selected to create the seat as two plates.

JP Full depth special (185)

You can now create haunch plates on the Haunch tab.

Ladder (S35)

On the Picture tab, there is a new O type hoop that creates hoops at the inside face of the stringers.

LProf base detail (1020)

On the Bolts tab, you can now define the bolt cut length, slotted holes, and the number of bolts and bolt spacing in the base plate.

L splice (175)

On the Parts tab, you can now define the assembly position number and the Class property for parts. You can define the corner chamfers on the new Parameters tab.

Multiple beam railing (S84)

On the Parts tab, you can now define if the toe plate is created as a plate or as a beam profile.

Partial stiffened end plate (65)

On the Parameters tab, you can now create chamfers on all four corners of the shear tab.

Railing plane to plane (90)

On the Parameters tab, you can now select to create the railing as a polybeam.

Railings (S77)

• On the Rails tab, there is a new setting, Connect closure, where you can select whether a connection is created between the closure and the first or last stanchion.

• Middle rail cuts at the first and the last stanchion are now cutting only one side of the stanchion.

Round joining plates (124)

• On the Parameters tab, you can now define different weld gaps for the main part and secondary part.



• On the Parts tab, you can now create ring plates.

Seat conn type 1 (52), Seat conn type 2 (54), Seat conn type 3 (59), Seat conn type 4 (57)

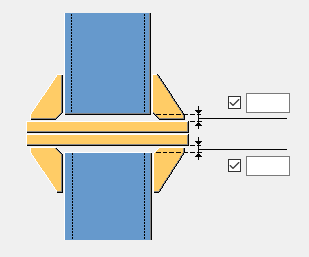

On the Picture tab, you can now define separate vertical offsets for the top and bottom seat.

On the Secondary bolts tab, you can now separate bolts into two bolt groups. By default, the bolts are created as one bolt group.

Seat type 9 (73)

On the Parameters tab, you can now specify three different types of cope cuts for the secondary part.

Seating cap (37), Seating (39)

On the Bolts tab, you can now delete bolts.

Splice connection (77)

It is now possible to use weld 8 for the welds between the main or secondary part and the internal or external flange plates.

Stairs (S71)

It is now possible to specify more than one horizontal distance between bolts in the steps.dat file. Option l now supports specifying several distances between square brackets.

Stanchion double plate (87), Stair base detail (1039)

On the Bolts tab, you can now define the bolting direction.

Stanchions (S76)

• You can now create stanchions as custom components.

• You can now define an additional height for the first stanchion. Previously, the same value was used for the first and last stanchion.

Stiffened end plate (1014), Web stiffened end plate (1016), Simple base plate 2 (1031), Stairs detail (1038), Stairs detail (1039), Base plate (1042), Stairs detail (1043), U.S. Bearing plate (1044), U.S. Base plate (1047), Circular base plate (1052), Base plate (1053), Box column base plate (1066), Tapered column base plate (1068)

On the Bolts tabs, you can now define a bolt comment.

Stiffened end plate (27)

• On the Parameters tab, you can now define the shear tab offset from the secondary part web axis and the stiffener offset from the shear tab.



• On the Parts tab, you can now define the height, width, and class of fitting plates.

Stiffened end plate (27), Stub (28), Seating cap (37), Seating (39), Haunch (40), Partial stiff end plate (65), Clip angle (141), Two sided end plate (142), End plate (144), Stiffener (1003)

Previously, the default chamfer value was rounded to the closest 5 mm. Now the radius of the profile is used as the default value.

Stiffeners (1003)

On the Parts tab, you can now define the Finish property for stiffeners.

Stub connection (119)

• On the new Top/bottom plate tab, you can now define the angle between both the top and bottom front stiffener and the horizon. Previously, you could only define the bottom angle. The angle cannot be defined in sloped or skewed situations.

• On the Picture tab, you can now define the top and bottom plate width.

Tower 1 diagonal (87)

On the Bolts tab, you can now specify the hole type, rotation of slotted holes, and in which part slotted holes are created.

Tube crossing (22), Shear plate simple (35), Shear plate to tube column (47), Shear plate built-up T (69), Welded to top flange (147)

On the Bolts tab, you can now define the bolting direction.

Tube gusset (20)

• On the Brace conn tab, you can now create chamfers on the connection plate also on the side of the connection plate that is closer to the bracing.



• On the Gusset tab, it is now possible to create four chamfers on the gusset plate when the gusset is created on a column.

Two sided clip angle (143)

On the Parts tab, there are now two new safety connection types, where the corner of the clip angle is chamfered.

Two sided end plate (142)

On the Notch tab, there is a new notch size option that measures the size from the edge of the main beam flange and from the outer edge of the top flange of the main beam.

U.S. Base plate (1047)

On the Parameters tab, the option to select between bolts or holes has been removed.

U.S. Bearing plate (1044)

• On the Stiffeners and Stiffeners 2 tabs, you can now define the stiffener polygon rotation and stiffener rotation angles, and separately set the shape and chamfer types of the left and right stiffeners.

• You can now define the Class property for all parts in the component.

• On the Anchor rods tab, you can now define the assembly prefix and start number for the anchor profile.

Web stiffened base plate (1016)

It is now possible to create the bottom chamfer on the web stiffener when the stiffener is sloped.

Welded beam to beam (123)

On the Chamfers tab, there is now a new chamfer type available for the secondary beam web chamfers.

Weld preparation (44)

On the Parameters tab, there are now two new chamfer types available for secondary beam web chamfers.

Welded gusset (10)

On the Brace conn tab, you can now select to create a rounded notch in the secondary parts.

Windbracing (S55), Vertical bracing (S56)

On the Parameters tab, you can now define the Class property for the subconnections used for connecting diagonal braces and rafters.

Wooden purlin shoe (15)

On the Parts tab, you can now select inversed options for the L position to weld the shorter side of the profile to the main part.

Wooden steps pan (S72), Polybeam pan (S73)

You can now define the Finish property for all parts.

Wraparound gusset cross (60)

• It is now possible to use weld 8 to create a weld between the seal plate and the gusset.

• On the Gusset tab, you can now define the clearance between the gusset and the connection plates or clip angles.



Wraparound gusset (58), Hollow brace wraparound gusset (59), Wraparound gusset cross (60)

On the Gusset conn 1 and Gusset conn 2 tabs, and the Gusset bolts 1 tab, you can now select whether the gusset or the clip angle (L profile) is set as the component main part for the bolts.

Z Pan (S74)

You can now define a step profile prefix on the Z pan tab.

Embedded anchors (8)

You can now enter longer file paths, up to 256 characters in the Browse configuration file box on the Placement tab. Previously, the maximum path length was 80 characters.

Tekla Structures Service pack 1

Reinforced concrete stair (95)

It is now possible to use Bar L rebars to reinforce all steps created by the component. Previously, the maximum number of steps to reinforce was 34.

Tekla Structures Service pack 1

Base plate (1004), Base plate (1042)

It is now possible to specify a class for the grout on the Anchor rods tab.

Tekla Structures2024 Service pack 3

Full depth S (185), JP Full depth Special (185)

You can now define the bottom chamfer of the tab plate on the Plates tab.

Tekla Structures Service pack 1

Stiffener end plate (27)

On the Parts tab, you can now select in the Use polygon weld setting whether a polygon weld is used when the space between the end plate top or bottom and the beam flange is less than 2 mm.

Tekla Structures2024 Service pack 5

Stiffeners (1003)

You can now select on the Parameters tab whether the component searches for input parts created as composites of welded parts.

Tekla Structures Service pack 3

Stub connection (119)

• On the Picture tab, you can now define the size of the stub as distance from the main part center line to the outer edge of the first end plate.

• On the Picture tab, you can now define the offset of the top plate and bottom plate from the main part web.

• You can now define the vertical offset of end plate 1 on the Parts tab.

Tekla Structures Service pack 1

Tube gusset (20)

• On the Gusset tab, there is a new setting for creating chamfers. You can now create four chamfers on the gusset plate when the gusset is created between the flanges of the main part. Previously, you could create two chamfers.

• Previously, the chamfers on the gusset plate were created only when the connection was used on one secondary part. This issue has been fixed now and chamfers are also created for more than one secondary part.

Tekla Structures Service pack 1
