Tekla Structures 2025 SP3

The latest Tekla Structures service pack and updated environment installers are available in Trimble Downloads.

Autosave period is reset when the model is saved

Previously, the model was sometimes coincidentally autosaved immediately after being saved. Now, the autosave period is reset when the model is saved, so the autosave does not happen immediately after the model has been saved.

TTSD-66612

Improved triangulation of slab top and bottom faces

An issue was fixed where slabs with Dz1 or Dz2 offsets at corner chamfers could produce incorrect solid geometry due to mismatched triangulation between the top and bottom faces. This inconsistency led to inaccurate geometry, which could cascade to downstream processes, including volume calculation and pour unit generation. The triangulation of the faces is now mirrored consistently, ensuring reliable geometry and accurate volume computation.

TTSD-47057

New in Tekla PowerFab Connector

Exporting UDAs

Exporting UDAs from reports to Tekla PowerFab is now possible.

TTSD-69775

Issue with submittal to Tekla PowerFab fixed

Previously, the user could not import the submittal package to Tekla PowerFab as the drawing number was not exported correctly from Tekla Structures. Now the general arrangement drawing number and the drawing PDF name are exported correctly.

TTSD-70668, TTSD-70754

New in AI Cloud Fabrication drawings (Preview)

Single column for selecting library and template or template's settings file and other Creation review improvements

Now, both the library and the template or template’s settings file can be selected in the Create from column. The suggested template or settings file is shown first, for example [BA.120], and the library containing the template or settings file is indicated below, for example, [BA]-[BEAM]. Previously, there were separate columns for selecting the library and the template or settings file.
Hovering over the preview icon displays a preview of the template and clicking the icon opens the Drawing library properties dialog in editing mode.

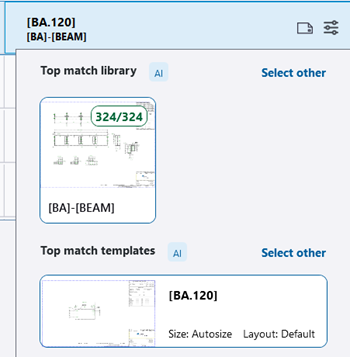

Click to show more information about the suggested library and the template or template’s settings file, or to change your selection. There are two sections with small previews, one for the library and one for the template or settings file.
- The label indicates that the best matching library or template or settings file is suggested by AI.
- For suggested libraries, the number of up-to-date drawings and the number of drawings in the library are displayed, for example, 324/324. Click Select other to select another library.
- For suggested templates, the drawing name is displayed. For suggested template’s settings files, the name of the settings file is displayed in the following format: template_name - settings_file_name, for example, [B.4] - BEAM 1. Also, the drawing layout and size information is given. Clicking Select other opens the Drawing library properties dialog in selection mode and you can select another template or settings file. A new column, Settings file, has been added in the drawing list to indicate the settings file associated with each template.
If the best matching library, template, or settings file cannot be found, a notification is displayed on the object row, and you can select another drawing creation option manually.
Now, if a drawing already exists for the selected object, a notification is displayed on the object row, and the row is shown with a gray background. The disabled rows can still be selected to highlight the objects in the model and to remove the objects from the dialog.
When the minus button is disabled in the Creation review dialog, a tooltip is now displayed telling you how to activate the button.

TTSD-70123, TTSD-70615, TTSD-70637, TTSD-70506, TTSD-69315

Adding drawings to collection - unifying button names

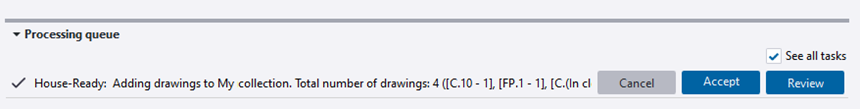

The OK button in the processing queue, displayed when adding drawings to the active collection and classifying drawings, has been renamed to Accept. This change ensures consistency with the button with the same functionality in the Review classification dialog.

TTSD-62249

Improved library selection

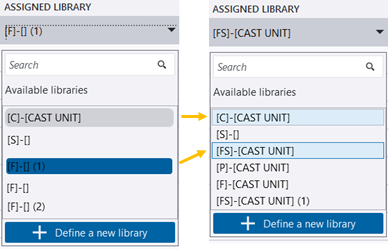

Selecting a new library in the Assigned library column of the Review classification dialog is now easier due to the new colors. When you hover over a library, the library is shown in light blue, and when you select a library, it is shown in light blue with a darker blue frame. Previously, the dark blue background of the selected library made the text difficult to read.

TTSD-70518

Merging libraries

When merging multiple libraries, the confirmation message now clearly lists all of the libraries that you have selected for merging. Previously, only one library was listed, even though you had selected multiple libraries.

TTSD-61928

New description field in Duplicate collection dialog

A new description field has been added in the Duplicate collection dialog, prefilled with the description of the original collection. If there is no previous description, there is a placeholder text: "Enter a description for this collection."

TTSD-69183

Other fixes in AI Cloud Fabrication drawings functionality

Previously, when you created fabrication drawings using the AI Cloud Fabrication drawings command, all associative notes would get marked as changed if they contained part position information or other data that needed to be updated between the used template and the target assembly. This issue has now been fixed.

TTSD-70285
Previously, when you created drawings using the best matching saved settings option, any layout overrides defined in the library were not applied to the created drawings. Now, layout overrides are applied to the drawings also when the best matching saved settings are used.

TTSD-69850
Sorting symbols were previously missing from the drawing list columns in the Drawing library properties dialog. Although the columns were sorting correctly, the symbols were not visible. This issue has been fixed, and the sorting symbols are now available.

TTSD-66057

Fixes

Defect number	Development area	Description
TSAC-8213	Concrete components	Rectangular column reinforcement (83): On the Rebar assembly tab, there is now a new setting, Align rebar assembly coordinate system. Select Yes to align the rebar assembly coordinate system with the component coordinate system.
TSAC-8255	Concrete components	Edge and corner reinforcement (62): The execution time of the component on large slabs with a lot of holes has now been significantly reduced.
TSAC-8917	Concrete components	Braced girders (88, 89): On the Picture tab, you can now select a new girder type with automatic wave length within a defined range and a new type of side bar geometry. You can also select a profile for the top straight rebar and extra positioning. In addition, some girder types have been improved to have new front view options to define width and height dimensions.
TSAC-8958	Concrete components	3D cut (10): Previously, modifying the component by changing the cut type did not always work correctly. The No cut option worked properly only if used when creating the component. This issue has now been fixed.
TSAC-9074	Concrete components	Braced girder (88), (89): On the Picture tab, there is now a new option, Align rebar assembly coordinate system. Select Yes to align the rebar assembly coordinate system with the component coordinate system.
TSAC-9168	Concrete components	The Auto splitter component previously did not split all the bars in a curved beam. This issue has now been fixed.
TSAC-9188	Concrete components	Edge and corner reinforcement (62): Previously, horizontal and vertical stirrups were not created with a combination of Exact spacing values distribution method and long edges. This issue has now been fixed.
TSAC-9212	Concrete components	Floor layout: Negative values now work in offsets for automatically cut objects.
TSAC-9213	Concrete components	Floor layout: When working with diagonal cuts, Floor layout now uses the default offset value at a selected floor boundary when you clear the offset value in the contextual toolbar and click the check mark button.
TSAC-9297	Concrete components	Sandwich wall window: Previously, the component created parts that had 0 volume. These parts are now removed from the model.
TSAC-9245	Steel components	Rail connection (70): Previously, notches on secondary parts were created incorrectly. This issue has now been fixed.
TSAC-9248	Steel components	Seat det type 1 (1033): Previously, welds were not correctly applied in some cases. This issue has now been fixed.
TSAC-9325	Steel components	Bolted gusset (11): Previously, when the gusset plate ran through the main part, the cut was created with an incorrect shape in some cases. This issue has now been fixed.
TSAC-9341	Steel components	Stub connection (119): Previously, the top and bottom plate chamfer dimensions were incorrectly applied in the component. This issue has now been fixed.
TSAC-9346	Steel components	Railings (S77): Previously, the number of stanchions affected the calculation of railing height. This issue has now been fixed.
TSAC-9348	Steel components	Base plate (1004): Previously, the leveling plate was created in an incorrect position in some cases. This issue has now been fixed.
TSAC-9361	Steel components	Simple base plate (55): Previously, stiffener chamfer dimensions were incorrectly applied in the component. This issue has now been fixed.
TSAC-9366	Steel components	Ayrshire File transfer (92): Previously, the CAM data was incorrectly using the label PURLIN in the ProductType for all Zed and Zeta sections.
TTSD-69924	Import, export, interoperability	Trimble Connect: Various issues regarding the handling of the default upload folder in the Upload model settings dialog have now been fixed.
TTSD-69976	Import, export, interoperability	IFC4 export: Previously, the export of pour objects or pour units failed when you selected the Selected object option. If you selected All objects, the concrete parts forming the pour objects were also exported. These issues have now been fixed.
TPLED-372	Templates and reports	Attributes in templates: Sometimes the ROW_IN_PAGE attribute did not work correctly in row rules. This issue has now been fixed.
TPLED-374	Templates and reports	Template Editor: Page breaks were not prevented even though the Use page breaks when height is exceeded option was not selected in the template page properties. This issue has now been fixed.
TTSD-67031	Templates and reports	Pull-out pictures in HTML reports: HTML reports did not show tapered bars in rebar groups in pull-out pictures properly. This issue has now been fixed.
TTSD-68014	Templates and reports	Template Editor: Using the fvf function in reports and drawing templates, a file that worked with spaces in names in Tekla Structures 2022 no longer worked in the latest Tekla Structures versions. This issue has now been fixed.
TTSD-69383	Templates and reports	Pull-out picture dimensions: Previously, in .html reports, pull-out picture dimensions were missing. This issue has now been fixed.
TTSD-69963	Templates and reports	Template Editor: Previously, color indexes were imported as RGB values during the DWG import. Now they are imported as color indexes, which is the correct way. As a result, black color (RGB 0,0,0) is converted to white when black drawing background is in use.
TTSD-70321	Templates and reports	Template Editor: Sometimes the symbol size was incorrect in marks when the symbol was included in a mark template. This issue has now been fixed.
TTSD-70443	Templates and reports	Sometimes, when the regional setting Language for non-Unicode programs in Windows was set to Turkish, templates failed to load. This issue has now been fixed.
TTSD-70453	Templates and reports	Template Editor: Formulas and rules failed when they used the word "IF" that was not part of the actual if-then-else clause. This issue has now been fixed.
TTSD-70660	Templates and reports	Previously, the GetAt() function returned "0" as output even though the value of the argument for it was undefined. It should have returned an empty string. This issue has now been fixed.
TTSD-70768	Templates and reports	Previously, symbols were not printed. This issue has now been fixed.
TTSD-68903	Drawings	Annotations: It was sometimes very slow to select and move a large number of annotations that contain a template with custom properties. The performance has now been improved, and selecting and moving annotations is faster.
TTSD-70386	Drawings	Drawing hatches: Selecting a hatch for a drawing sketch object, such as a rectangle, did not always work. This issue has now been fixed.
TTSD-70505	Drawings	Previously, in specific cases when a drawing was missing the relation to its main part in the model, and you had a complex value for the advanced option XS_SINGLE_PART_DRAWING_VIEW_TITLE, a Tekla Structures application error could occur. This issue has now been fixed.
TTSD-67527	Tekla Model Sharing	Tekla Model Sharing: When the model is shared for the first time, the Description property of a shared model now uses by default the description entered in the Project properties.
TSAC-9285	Reinforcement	Rebar sets: The performance of large rebar sets containing multiple coupler or anchor components has been significantly improved.
TTSD-70590	Reinforcement	Rebar shape manager: Tekla Structures now correctly reads valid `RebarShapeRules.xml` rule files from the model, project, firm, and system folders, in that order.
TTSD-24071	Modeling	Curved items, such as ramps, no longer display graphical issues when they are native objects or reference objects.
TTSD-51268	Modeling	Filtering: When the Select from model or Multi-select from model option is used with the Template category and with property definitions for `MATERIAL`, such as `MATERIAL.STRENGTH_CLASS`, the values are now shown also for pour objects and pour units.
TTSD-59964	Modeling	Fillet edges are now displayed with improved performance. You can control the showing and hiding of the edges through the settings.
TTSD-64758	Modeling	Area selection from left to right does not select the underlying part anymore if the whole part is not included in the area selection.
TTSD-68312	Modeling	Small or thin objects no longer appear overly bright when zooming out in rendered model views.
TTSD-69712	Modeling	Previously, workplane related template attributes were not working in model view filters and selection filters. This has now been fixed.
TTSD-69974	Modeling	Previously, the Building hierarchy commands for manual assignment of assemblies were not always shown on the context menu when they should have been shown. This issue has now been fixed.
TTSD-70422	Modeling	Previously, the contextual toolbar for parts sometimes did not display the dropdown for material. This has now been fixed.
TTSD-70438	Modeling	Previously, the middle height of some profiles was not calculated correctly. The middle height is now calculated correctly.
TTSD-70578	Modeling	Previously, in certain cases, clicking too quickly when switching between model and drawing could cause old property dialogs to appear. This has now been fixed.
TTSD-70411	Installation	Before, the TSEP installer did not allow different extensions with the same name to be installed at the same time. Now, the TSEP installer decides based on the upgrade code whether it can install and upgrade extensions.
TTSD-70139	Core	Previously, Tekla Structures might have stopped working unexpectedly when you closed and reopened a plugin component dialog. This has now been fixed.
TTSD-70764	Tools and components	Earlier, clicking the Create button in a component dialog did not work correctly after you had selected another component of the same class in the Applications & components catalog and created it in the model. Clicking the Create button started the command of the component you just created instead of the component where you clicked the Create button. This issue has now been fixed.
TTSD-69756	Import, export, interoperability (steel)	DSTV to DXF Converter: Previously, the Number of decimals setting affected all double values including arc curve parameters. Particularly with small values, lines could be exported instead of arcs. Also, arc angles could be inaccurate causing offsets in the contour. Now, the arc bulge and angle parameters ignore the Number of decimals setting and arcs are exported with proper precision.
TTSD-69775	Import, export, interoperability (steel)	Exporting UDAs from reports is now possible.
TTSD-70130	Import, export, interoperability (steel)	When exporting a Drawings for external approval package or a Fabrication package, the .trb file name is now the Tekla Structures model project name.
TSAC-9273	Import, export, interoperability (concrete)	Export Unitechnik (79): On the SLABDATE block data specification tab, you can now specify the type of the Slab area for the export. The options are Gross area, Net area with cutouts, Net area without cutouts, and Template.
