Tekla Structures 2025 SP2

The latest Tekla Structures service pack and updated environment installers are available in Trimble Downloads.

Improvements in filterable drop-down lists

Searching for settings files or property files in the drop-down lists in the property pane and in several dialogs has now been improved: typing anything that matches any part of the file name is considered as a search match.

TTSD-67211, TTSD-67294, TTSD-67221, TTSD-67240
The filterable drop-down lists in the property pane and in several dialogs now allow you to select an item with the Enter key if there is only one item available in the list.

TTSD-67782, TTSD-69070, TTSD-68975, TTSD-68956

New controls for setting color and type of section lines and own hidden lines in pour objects

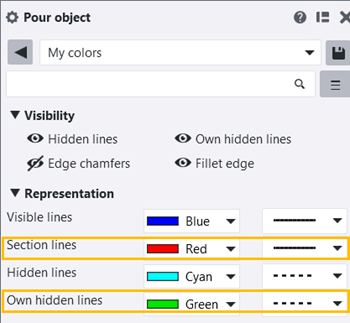

You can now control the color and type of section lines and own hidden lines also in pour objects using the new settings, Section lines and Own hidden lines, in the Pour object properties in the property pane.

Previously, you could only modify the color and type of visible lines and hidden lines in pour objects. New controls for these line types were first introduced in Tekla Structures 2025 for parts and neighbor parts.

TTSD-69337

New dimensioning type in automatic view dimensioning - Center of gravity dimensions

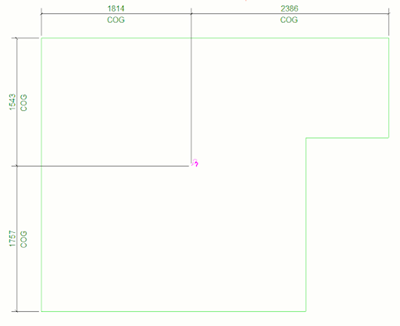

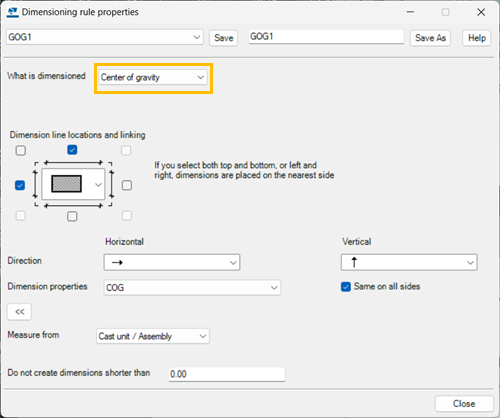

Tekla Structures 2025 SP2 introduces a new rule-based dimensioning type, Center of gravity dimensions, in the view-specific dimensioning. Now you can create dimensions indicating the center of gravity automatically in your fabrication drawings.

Earlier, you could only add COG dimensions manually or using a Tekla Warehouse extension.

TSAC-8713

New in AI Cloud Fabrication drawings (Preview)

Improvements in the Creation review dialog
- New column for selecting a template or settings: A new column Templates/Settings has been added to the Creation review dialog, allowing you to select a template or its settings file for drawing creation. This provides greater flexibility and control over the drawing creation process.

  Previously, there was only one column for selecting the library, and the drawing creation was done using the best matching template or its settings file in the selected library.

  A notification now appears while the service searches for the best matching template or settings file.

  The best matching template or its settings file is automatically selected, but you can also manually select another option.

  TTSD-69701, TTSD-70417

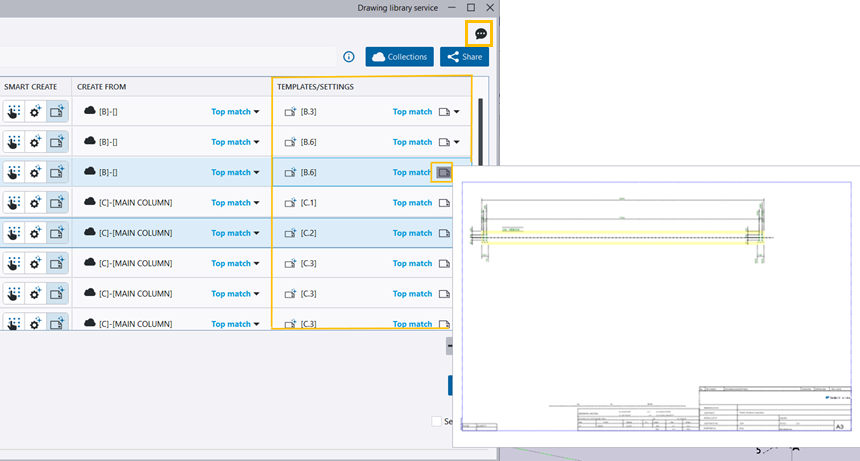

- Drawing template preview: A new template preview icon appears next to the best matching template in the Creation review dialog. Hovering over the icon displays a preview of the drawing template. This preview helps you evaluate which suggested drawing template best suits your needs. Clicking the icon opens the snapshot of the template drawing in the Drawing library properties dialog.
  TTSD-69709, TTSD-69412
- Changes in the Create column: In the Create column, a checkbox is available for selecting the objects for which you want to create drawings. The checkbox is disabled if drawing creation is not possible for an object. Now, while the service searches for the best matching library and the best matching template or settings file, the checkbox is replaced by a spinning icon to indicate background processing. The checkbox reappears when the best matches are found or if you manually select the library or the template or settings file before the search is finished.

  TTSD-69917
- Improved Create button functionality: The Create button was previously always enabled, even when objects were being selected or when the associated library, template, or settings were still loading. This could lead to undesired selections and errors. Now, the Create button is disabled until all items that have a creation checkbox have a valid target library and template or settings file selected.

  TTSD-69705, TTSD-69917
- Progress bar display: Previously, two progress bars were displayed during the creation of drawings, which could be confusing and inconsistent with the local fabrication drawings functionality. Now, a single progress bar is shown, providing a clear and consistent indication of progress during the drawing creation process, aligning with the local fabrication drawings functionality for better user clarity.

  TTSD-69705
- Submit feedback: The Submit feedback button, introduced earlier in the Collections dialog, is now also available in the Creation review dialog. Clicking this button opens a survey in your default browser, using the current Tekla Structures language. Additionally, remember that we have a dedicated platform for learning and involvement in the development of the AI Cloud Fabrication drawings feature through Trimble Labs.

  TTSD-69980
Removed misleading tooltips: The tooltips for the search boxes in the Collections dialog previously indicated a specific way of working that was not applicable. These tooltips have now been removed.

TTSD-69168

Fixes

Defect number	Development area	Description
TSAC-7206	Concrete components	Wall layout: Previously, adding a seam on skewed edges created a nonsensical opening. This issue has now been fixed.
TSAC-8773	Concrete components	Wall layout: Previously, when you had used pre-defined settings that included a detailing component, and then loaded new settings that did not have a detailing component defined, the detailing component from the previous settings was still taken into account. This issue has now been fixed.
TSAC-9258	Concrete components	Mesh bars: The cover thickness for meshes is now distributed more consistently.
TSAC-6476	Steel components	Column with stiffeners S (187): Previously, weld preparation cuts were created even if weld preparation was turned off. This issue has now been fixed.
TSAC-8564	Steel components	Bolted gusset (11): Previously, bolts were created in incorrect positions when a rectangular gusset was used. This issue has now been fixed.
TSAC-8897	Steel components	Corner bolted gusset (57): Previously, there was the clash between the stiffeners and the main or last secondary parts in some cases. This issue has now been fixed.
TSAC-8899	Steel components	Corner bolted gusset (57): Previously, some welds between the gusset, main part, last secondary part, and stiffeners were created incorrectly. This issue has now been fixed.
TSAC-9064	Steel components	Bolted gusset (11): It is now possible to specify the gusset plate location when the secondary parts are located on both sides of the main part.
TSAC-9189	Steel components	Windbracing 2 (16): Previously, assemblies were not correctly created for the parts. This issue has now been fixed.
TSAC-9226	Steel components	Tapered column-beam stub (150): Previously, weld access hole cuts were created with incorrect sizes. This issue has now been fixed.
TSAC-9229	Steel components	Stringer stanchion stiffener (69): You can now define the distance between the stiffener and the top and bottom flanges of the primary part.
TSAC-9254	Steel components	Tapered column-beam stub (150): Previously, the component was not working for a main part wider than 1000 mm. This issue has now been fixed.
TSAC-9271	Steel components	Corner bolted gusset (57): Previously, when the last selected part was a polygon plate, the gusset was created with an incorrect offset from that polygon plate. This issue has now been fixed.
TSAC-9280	Steel components	Kingspan Cold rolled sleeved (28): When the Bolt on Cleat Centre option is set to 50 or 60, the bolts are now a 55 mm backmark.
TSAC-9282	Steel components	Kingspan Cold rolled sleeved (28): The rotation of the L profile (such as, RNB and RSA) has been updated.
TSAC-9311	Steel components	Z pan (S74): Previously, the back wall slope width between the nosing point vertical line and the Z pan back wall was not correctly applied for some pan types. This issue has now been fixed.
TSAC-9354	Import, export, interoperability	In Tekla Structures 2025 SP1, there was an error opening some dialogs, for example DSTV to DXF Converter, after changing the environment. The problem has now been fixed.
TPLED-369	Templates and reports	Template Editor: The join() and join2() functions always returned 0. This issue has now been fixed.
TPLED-371	Templates and reports	Textual templates: If the value field formula contained an if-then-endif clause without the else part, the formula would always return 0. This issue has now been fixed.
TTSD-69868	Templates and reports	An application error occurred during report creation. This problem has now been fixed.
TTSD-70273	Templates and reports	Previously, some washers and nuts were missing from the reports. In specific cases where the bolt standard or bolt name was not prioritized in the combining order, washers or nuts were not included in the reports. This issue has now been fixed.
TSAC-9112	Drawings	View-specific dimensioning: Recess and hole dimensions are now created faster than before.
TTSD-67971	Drawings	In some cases involving complex, curved geometry, unwanted circles could appear in drawings, especially after selecting drawing objects, zooming, or reopening the drawing. This issue has now been fixed.
TTSD-68319	Drawings	Section Mark X & Y text offset: When you tried to type in a value, it automatically changed to something else. This issue has now been fixed, and you can type in values normally.
TTSD-68931	Drawings	A critical error sometimes occurred when you tried to change the color of an object in a Tekla Structures drawing. This issue has now been fixed.
TTSD-69355	Drawings	Drawing image path: The drawing property pane folder browser for images works correctly now. Earlier, an incorrect path might be displayed when you double-clicked any image in a drawing.
TTSD-69774	Drawings	Cloning drawings: Sometimes a bigger paper size was used or views were scaled in the new, cloned drawing even though there was no need. This issue has now been fixed.
TTSD-69888	Drawings	A Tekla Structures application error occurred when you opened some drawings. This issue has now been fixed.
TTSD-70155	Drawings	Dragging polylines in drawings could sometimes cause Tekla Structures to freeze. This issue has now been fixed.
TTSD-70164	Drawings	An application error occurred in Tekla Structures 2025 SP1 if you selected a section view and a detail view at the same time and then loaded view settings were loaded from the property pane. This issue has now been fixed.
TTSD-70269	Drawings	Earlier, when the drawing part setting Orientation mark was selected, all weld outlines could also show orientation marks. This issue has now been fixed.
TTSD-70305	Drawings	Printing to PDF: In certain cases, when a drawing contained arcs, printing to PDF could fail. This issue has now been fixed.
TTSD-70381	Drawings	Earlier, when loading drawing view properties and modifying drawing view through the property pane, section line, own hidden line and center line properties were not applied. This issue has now been fixed.
TTSD-57698	System and options	Previously, the directory browser component showed an error message when the user tried to open the INP folder on the Advanced tab. This issue has now been fixed.
TTSD-48360	Tekla Model Sharing	Tekla Model Sharing: Previously, Tekla Structures might have stopped working when you read in. This has now been fixed.
TTSD-69009	Reinforcement	Reinforcement sequence numbering: Previously, rebar assemblies had different reinforcement sequence numbering logic between precast and cast-in-place concrete structures. This issue has now been fixed, and reinforcement objects in rebar assemblies are now always numbered separately from other reinforcement objects in both cast units and pour units.
TTSD-69250	Reinforcement	Rebar sets: An issue has been fixed where the bars in a rebar set that uses a leg surface were incorrectly flipped outside the concrete after a Tekla Model Sharing read-in operation. The same issue occurred after using the Save as command.
TTSD-70059	Reinforcement	Rebar sets: An issue has been fixed where the Split offset value was sometimes incorrectly applied to a splitter placed on or near a leg face edge.
TTSD-67051	Modeling	Property pane: Now, when you select a direct modification object, such as a modifier, and copy individual properties, all active property copy switches are cleared when another direct modification object is selected.
TTSD-69082	Modeling	Live Collaboration: Now, when joining a session with a very large model, Tekla Structures performance has been improved and joining is faster.
TTSD-69554	Modeling	Previously, you needed to restart Tekla Structures to activate the value change in the advanced option XS_USE_INTEGRATED_BUILDING_HIERARCHIES. Now the advanced option works correctly as a model-specific advanced option. Reopen the model to activate the changed value.
TTSD-69890	Modeling	Previously, the project description entered in the Project properties was not visible when Tekla Structures was started. This has now been fixed, and the entered description is visible.
TTSD-69997	Modeling	Previously, when you copied properties from a timber object that had been added by the timber object extension, Tekla Structures might have stopped working unexpectedly. This has now been fixed.
TTSD-70380	Modeling	Previously, screw group creation did not succeed. This has now been fixed.
TTSD-70438	Modeling	Previously, the middle height of some profiles was not calculated correctly. The middle height is now calculated correctly.
TTSD-69898	Licensing	Tekla Launcher now supports TC1 bundle licenses. To enable the on-premises license server, set XS_LICENSE_SERVER_HOST in the `user.ini` file (preferred option) or in the `teklastructures.ini` file. Users must have a Diamond, Graphite, or Carbon license in the TC1 bundle and they must belong to and have a valid TC1 organization. Educational or trial users are not supported for on-premises cases, as they have an online license.
TTSD-66862	Core	The issue with customized Excel Visual Basic scripts that caused Tekla Structures to stop responding has now been fixed.
TTSD-70421	Tools and components	In Tekla Structures 2025 SP1, in specific cases, some applications might not start, particularly Bridge creator. This issue has now been fixed.
TTSD-69863	Numbering	DSTV/NC: Previously, contour marking was not created correctly for short contour lines, which caused identical parts to have different numbers. This issue has now been fixed.
TTSD-70251	User interface	The Submit feedback button has been added to the Numbering preview dialog.
TTSD-70044	Import, export, interoperability (steel)	STEP/IGES export: A hollow, round, rectangular profile that was used as a cutting part was not exported properly in the STEP format. This issue has now been fixed.
