Tekla Structural Designer 2025 SP3.1
The latest Tekla Structural Designer service pack is available in Trimble Downloads.
Download Tekla Structural Designer
Service Pack SP3.1 (version is 25.3.1.2) was released on 21st November 2025 to replace SP3 (version 25.3.0.92). This was necessary due to an issue in SP3 that prevented the "Decompose to" property from being displayed for wall panels.
This release will update your Tekla Structural Designer installation to version number 25.3.1.2 and should be installed to ensure optimum function of the program. It includes a number of new features, enhancements and issue resolutions as detailed below.
If you are upgrading from a version earlier than the immediately prior release of 2025 first release (version 25.0.1.45 released March 2025), you can find details of enhancements and fixes for all previous releases in Tekla User Assistance (TUA) via the link below:
Licensing and installation
Licensing
-
No new license is required for this version.
-
Client License Service Version - no update is required for this release.
-
License Server Version - this relates only to perpetual licenses and the Server (Sentinel RMS) license method. Provided your license server has been updated to version 6.0 or later no update is required for this release.
Installation
-
This service pack requires Tekla Structural Designer 2025 first release or later to be installed and will update your current version.
- Integration
-
Tekla Structures - if you wish to integrate with Tekla Structures for optimum performance you should install both this release and Tekla Structures 2025 (and the most recent Service Pack for this).
-
Tekla Tedds - for integrated design using Tekla Tedds you should install Tekla Tedds 2025 AND ensure you have installed the latest updates for this. These can be obtained from Trimble Downloads.
-
Tekla Portal Frame and Connection Designer 25 - if you install this release and use Tekla Portal Frame Designer and/or Tekla Connection Designer you should install Tekla Portal Frame Designer 25 and/or Tekla Connection Designer 25 available from Trimble Downloads.
-
Autodesk® Revit® - the most recent Tekla Structural Designer Integrator for Autodesk Revit 2025 was released in April 2025. For more information about this see the Tekla Structural Designer Integrator for Autodesk Revit 2025 SP1 Release Notes. The installation for this is available from Trimble Downloads. If you are now using Autodesk Revit 2025, you can install this to perform BIM integration with Tekla Structural Designer.
-
Supported Revit Versions - the other currently supported Revit versions are: Tekla Structural Designer Integrator for Autodesk Revit 2023 SP2 and Tekla Structural Designer Integrator for Autodesk Revit 2024 SP2. The installation for these are available from Trimble Downloads. If you are performing BIM integration with any of these previous Revit© versions, we recommend you install the latest version of the associated Integrator.
-
-
-
Previous Versions and file compatibility - files from all previous versions can be opened in this release, however note that, once saved, they cannot then be opened in a previous release. If you wish to retain this option we therefore recommend using the File > Save As… option to save a copy of the file in the previous release and retain the original.
Highlights
In this section we give details of some of the significant new features included in this release. These are intended to give a broad overview of their function and workflow and significant changes in operation/ behavior.
Other enhancements and fixes
General & modeling
-
General performance and stability improvements
This release includes several additional fixes, not explicitly detailed here, that enhance overall performance and stability.
-
[TSD-18381/18382] - Combination Generator: Easier management of Loading Scenarios
Previously, although three default combination scenarios were available, creating new scenarios was not straightforward.

Additionally, after defining multiple scenarios, activating combinations by scenario required manually selecting the appropriate checkboxes.

These processes have been enhanced as follows:
-

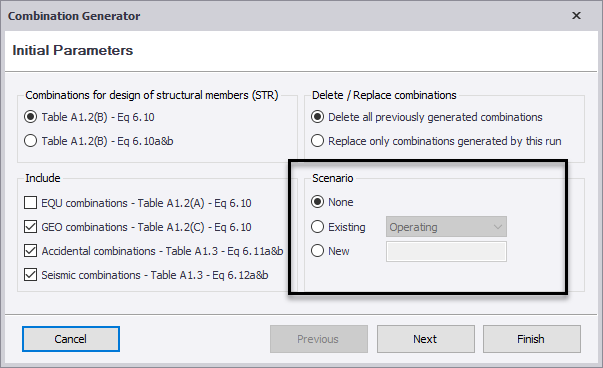

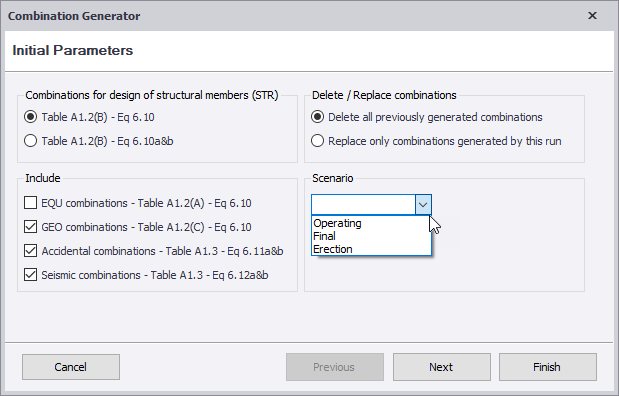

On the Combination Generator dialog, scenario radio buttons have been introduced.

-
By default (as shown above), generated combinations are not assigned a scenario. However, you can select an Existing scenario.

-
Alternatively, you can create a New scenario.

-
-

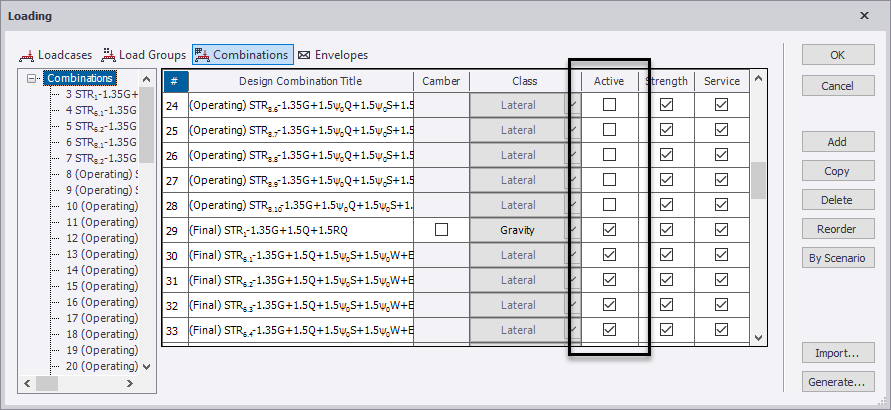

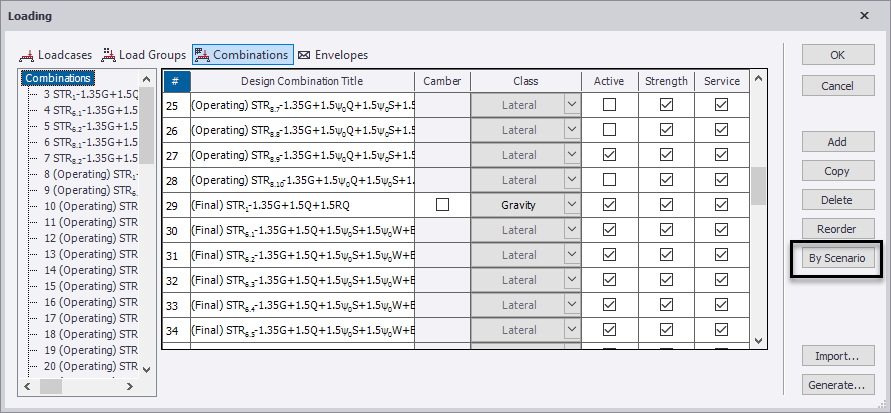

On the Combinations dialog, a new By Scenario button simplifies setting combinations to be active by scenario.

-
Clicking By Scenario displays a dialog with an Active checkbox for each scenario.

-
If none of the combinations in a scenario are active, its box is unticked.
-
If some of the combinations in a scenario are active, its box displays a square block.
-
If all of the combinations in a scenario are active, its box is ticked.
-
-

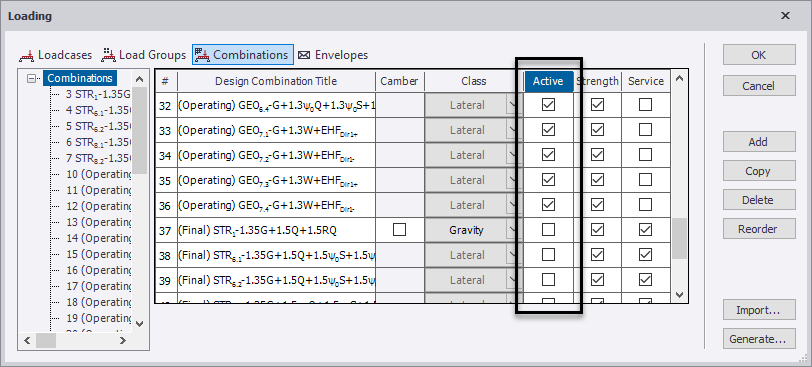

After making your desired changes, click OK. All Active checkboxes on the combinations page will update accordingly.

-
-
-
[TSD-18384] - New US Customary Density unit: lbf/yd3 introduced
The default Density unit for US Customary settings was previously lbf/ft3. A lbf/yd3 unit has been added. To apply this unit to existing models, update the Density unit through the Model Settings dialog. To make lbf/yd3 the default for new models, update the Density unit for the active settings set in the Settings dialog.
-
[TSD-18385] - New US Customary Volume unit: yd3 introduced
The only Volume unit for US Customary settings was previously ft3. A yd3 unit has been added. To apply this unit to existing models, update the Volume unit through the Model Settings dialog. To make yd3 the default for new models, update the Volume unit for the active settings set in the Settings dialog.
-
[TSD-18379] - Wall support fixity graphics enhanced
In previous releases, a triangular prism indicated a wall support in 3D views, regardless of the wall fixity provided.

In Release 2025 SP3, when a support is fully fixed (all 6 degrees of freedom are fixed), it is now represented as a rectangular prism. For all other wall support configurations, the triangular prism is still used.

-

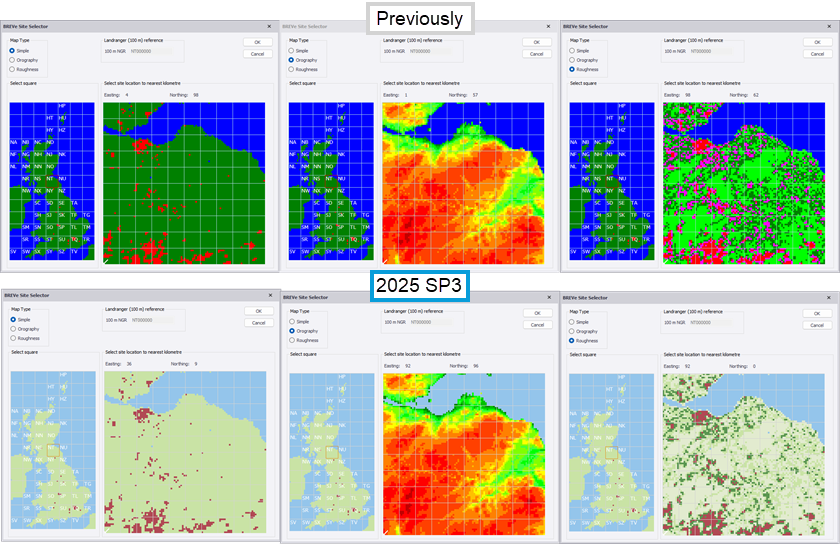

[TSD-18317] - BREVe wind site selector map colors updated
The BREVe site selector map colors in the wind wizard (per BS EN 1991-1-4 and BS 6399-2) have been updated to a more modern appearance.

-
[TSD-18470] - Frame views orientation corrected
An error in Release 2025 SP2 that affected the orientation of structures in Frame views has been corrected.
-
[TSD-18115] - Trimble Assistant: Now fully supported
The Trimble Assistant for Tekla artificial intelligence (AI) chat service was initially introduced as a preview feature in Release 2025 SP2. It was disabled by default. In this release, it has been upgraded to a fully supported feature and is now enabled by default.
-
[TSD-18176] - Reference Models now displayed in 2D views
Previously, when a reference model was imported, it appeared in a transparent gray color only in 3D views. It is now also displayed as a shadow layer in 2D level and frame views.
To control the display in these views, a new "Shadow layer" tab has been added to the Edit Reference Model dialog, as shown below. This tab allows you to toggle the shadow layer on or off, change its color, and set the cut depth for displaying the reference model geometry in horizontal and vertical planes.

-
[TSD-18178] - Snapping to Reference Models in 2D views now possible
When a reference model is displayed in a 2D view, you can now snap to corners and intersections of its lines. This functions similarly to snapping to lines in a DXF shadow.
Interoperability
-
Remoting API Enhancements
There have been some enhancements to the Open API with this release - for information about these see the Tekla Structural Designer 2025 Open API Release Notes.
-
[TSD-18451] - Double angles not included in IFC export
An issue has been fixed where Back-to-Back L sections were being omitted from IFC Exports. Similarly for Back-to-Back and Toe-to-Toe channel sections.
Analysis
-
[TSD-18455] - Speed of analysis
This service pack enhances analysis performance, especially for models containing numerous structural walls. This improvement addresses slowdowns that were introduced by new features in Tekla Structural Designer 2025.
-
[TSD-17365] - Slab meshing procedures
Due to ongoing enhancements, adjustments have been made to the meshing process for two-way spanning slabs. This may result in a slightly different FE mesh compared to previous versions, though a significant impact on results is not anticipated.

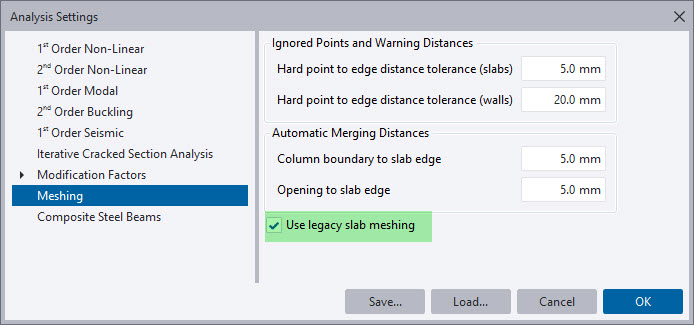

If you encounter any issues with the new meshing, the Use legacy slab meshing option is available in the Analysis Settings dialog. Selecting this option will generate meshes identical to those produced before this service pack.

If you encounter any issues with the new meshing, please report them to our support team so they can be addressed. The option to use legacy meshing will be removed in a future release.
As part of this enhancement, the Scene Content entity information controls for Slabs have also been updated.

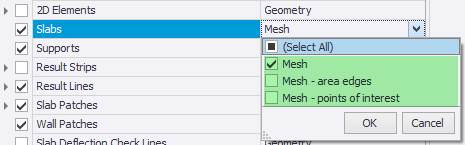

The highlighted controls shown above now work as follows:
-

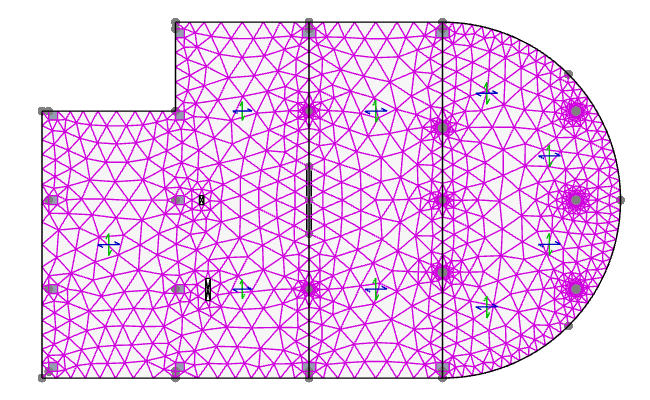

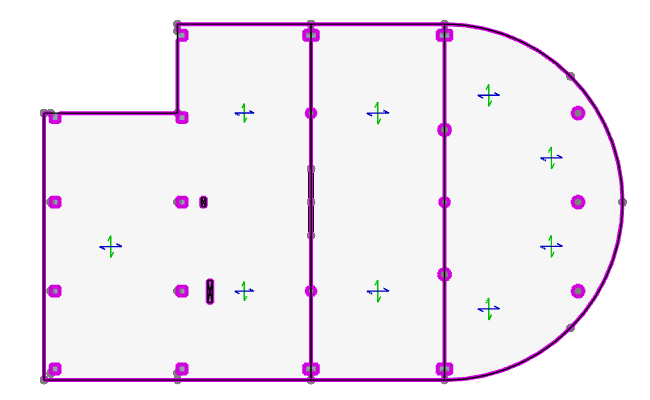

Mesh - shows a preview of the mesh that will be created next time you run analysis.

-
Mesh - area edges - shows a preview of the boundaries of the individual mesh groups.

-
Mesh - points of interest - shows a preview of the points of interest that act as seed nodes for the mesh.

- Adjustments have been made to how the automatic merging distance between openings and slab edges is applied during FE mesh creation. This change is expected to reduce the number of mesh quality warnings. For guidance on adjusting merging distances to minimize such warnings, refer to: Slab meshing controls.
-
-
[TSD-18665] - Modal Analysis - Mass normalized mode shape values
At user request in a previous release, we introduced units to the headers of tabular data for mode shapes. Unfortunately, this introduced two issues:-
It caused additional confusion for most users.
-
For US units a unit conversion error meant that the values reported did not correctly evaluate to modal mass = dimensionless 1
In this service pack units have been removed from the headers of mass normalized mode shape displacements tables and the issue for US units has been corrected.
It's important to note that the underlying analysis was correct and is unchanged. For more information please refer to: Modal mass.
-
Design - ACI/AISC United States
Masonry Wall Design using Tekla Tedds
This release introduces the following improvements for Masonry Wall Design using Tekla Tedds:
-
[TSD-17772] - Masonry walls - quick jamb wall patch placement

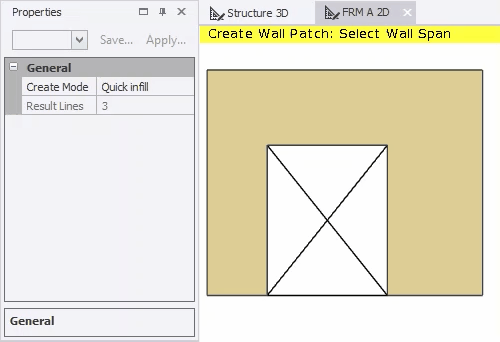

The Wall Patch command now includes a new Quick jamb/end create mode. This mode allows for the rapid placement of patches with a specified cell width. In this mode, all cells are fully grouted and reinforced, and placed adjacent to wall ends or openings.

After creation using this mode, the patch is treated like any other patch and is included in the design summary accordingly.
To improve clarity, the Quick create mode has been renamed to Quick infill.
-
[TSD-17508] - Number of design cases for each result line in a patch has been reduced
Previously, the number of design cases exported to the Tedds calculation for each result line in a patch was twice the number used for a panel.
For a panel, two design cases were created for each result line. These cases represented enveloped results for all load combinations as follows:
-
Max axial
-
Min axial
For a patch, four design cases were created for each result line. These cases represented enveloped results for all load combinations as follows:
-
Left side: max axial
-
Left side: min axial
-
Right side: max axial
-
Right side: min axial
Using twice as many cases for patches negatively impacted calculation speed but had minimal impact on the design results.
With this enhancement, the number of design cases for each result line in a patch has been reduced to two (Max axial and Min axial). This makes the approach consistent with that used for panels. This change approximately halves the calculation time for each wall patch. Note that this change introduces slightly more conservatism into the patch design. Consequently, there is a small possibility that designs that passed in previous releases might now fail. We believe the minor increase in conservatism is significantly outweighed by the substantial reduction in design time.
-
-
[TSD-17708] - Masonry wall detail drawing

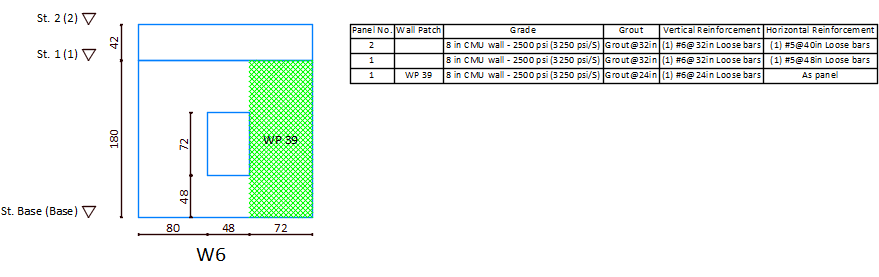

You can now create masonry wall detail drawings.
To create a masonry wall detail drawing, right-click the desired wall and select Generate Drawing from the context menu. Then, enter the necessary information in the DXF Export Preferences dialog and click OK.
-
The drawing displays the wall in elevation, including openings and patches. You can choose to include dimensions (as shown in the image above). By default, the masonry wall schedule is also included.
-
Similar to other drawing variants, Drawing Management allows you to create a single drawing containing multiple masonry walls.
To facilitate drawing creation, the following items have been added to the drawing settings:
-
A Masonry Wall Detail drawing variant
-
A Masonry Wall Detail layer configuration
-
A Masonry Wall Detail layer style
-

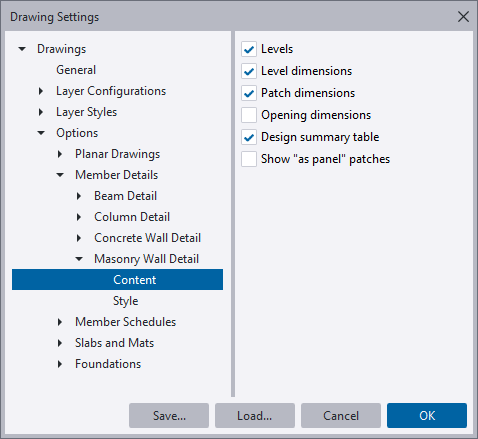

A Masonry Wall Detail options page for controlling the drawing content.

-
Content options allow you to display construction level labels, toggle dimensions, and include the masonry wall schedule table. Additionally, an option is available to show or hide 'as panel' patches. By default, this option is unchecked, which means patches with grout and reinforcement levels set 'as panel' are not displayed. This is because these locations have already been checked and confirmed not to require strengthening. However, if the drawing is intended for a calculation package, you might prefer to show all patches.
-
-

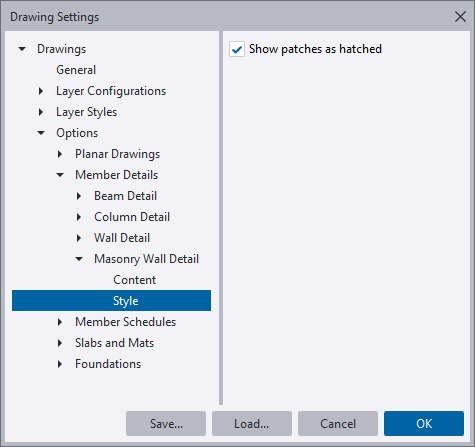

A Masonry Wall Detail options page for controlling the drawing style.

-
The single style option allows you to display patches as hatched or unhatched.
-
-
Reports
-

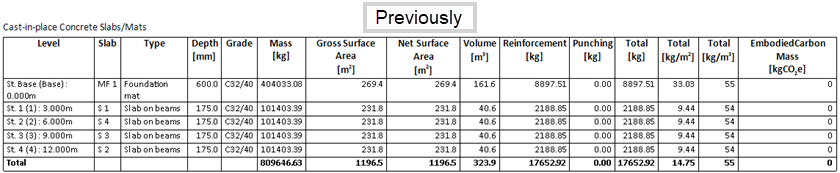

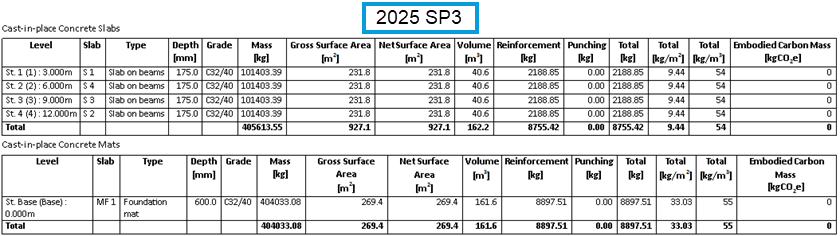

[TSD-18386] - Split mat foundations and slabs into separate sections
In ‘Material Listing’ reports, slabs and mats are now separated, providing distinct quantities for materials and reinforcement.




-
[TSD-183877] - Pile reinforcement tonnage in material lists
In ‘Material Listing’ reports, pile reinforcement is now reported with pile type, number of piles and total mass.

-
[TSD-18388] - Option to omit combination name in Foundation Reactions report

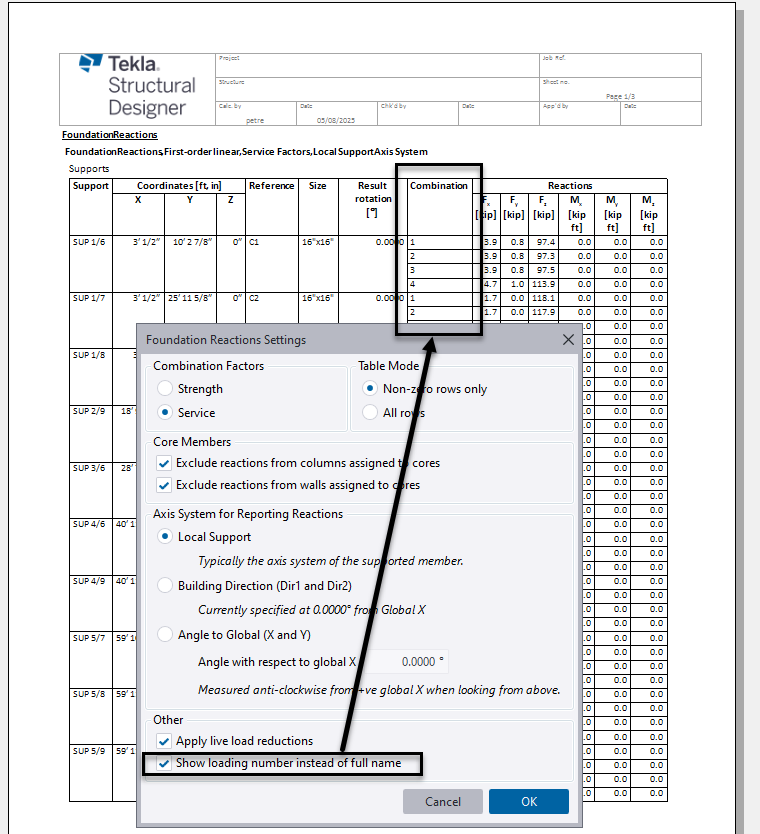

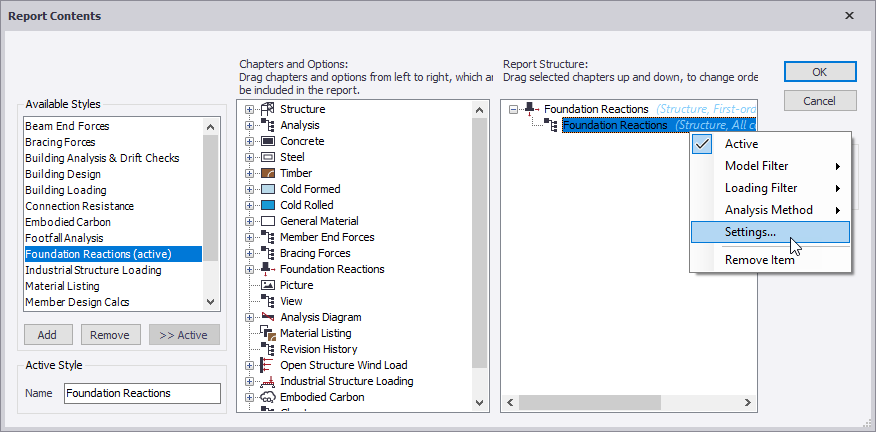

After selecting the settings for the 'Foundation Reactions' report chapter (as shown below), a new option, Show loading number instead of full name, is now available in the Foundation Reactions Settings dialog.

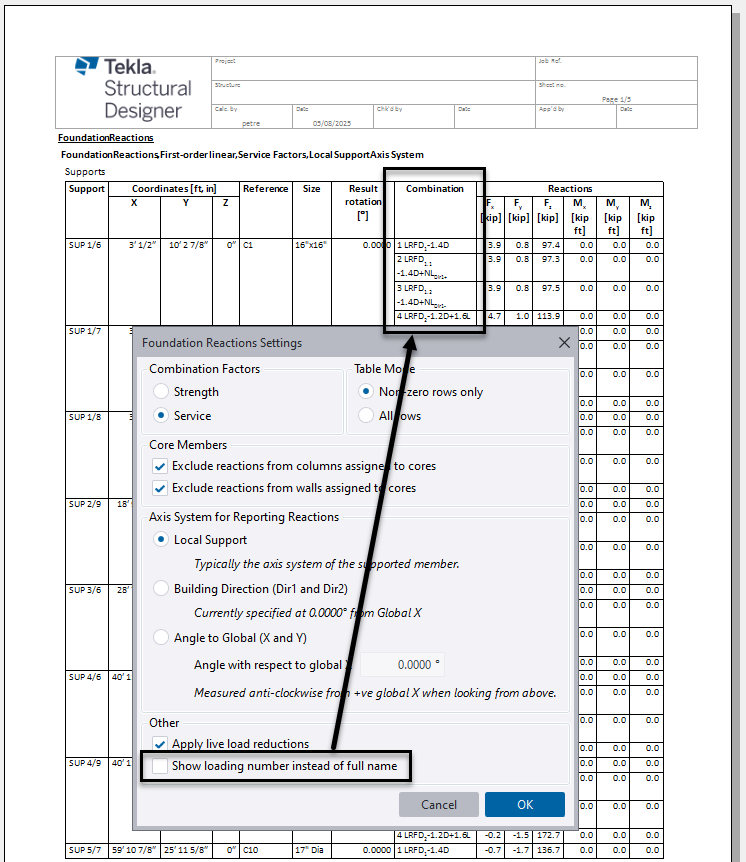

By default, this new option is unselected, meaning combination names will appear in the report as they did previously.
When this option is selected, the combination number is displayed, but the load combination name is omitted. (Previously, when Combination Factors were set to Service (as shown above), including the combination name caused confusion among foundation subcontractors, who might have mistakenly interpreted the reactions as strength/factored values.)
