Tekla Structural Designer Integrator for Autodesk Revit 2023 SP2

The Tekla Structural Designer Integrator add-on that is compatible with Autodesk® Revit® 2023 now has a service pack 2 available.

Download Integrator for Autodesk Revit service packs

Download instructions:

Select your version of Tekla Structural Designer.
Select the Integrator for Autodesk Revit updates File type then Apply filter
Click the button adjacent to Addon for Autodesk Revit 2023 Service Pack 2

Check the information below to find out about the enhancements and fixes included in this service pack:

Enhancement: Changes to the Create Analytical Model command (TSD-14627, TSD-16384, TSD-16558 & TSD-16559)

The Create Analytical Model command has been enhanced with this version.

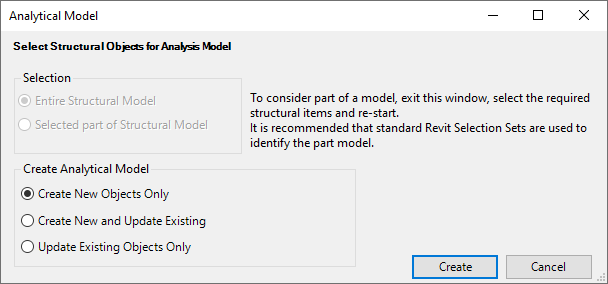

Fig 1. Create Analytical Model dialog.

Additional options to Create Analytical Model Command

The Create Analytical Model command has been amended to now contain 3 options:

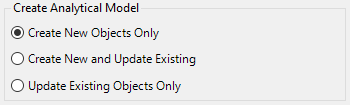

Fig 2. Create Analytical Model dialog (partial).

Create New Objects Only
- Revit physical instances with no associated analytical instance - This option ignores any existing analytical instances
Create New and Update Existing
- This updates both physical instances with an existing analytical instance and creates new analytical instances for any physical instances with no associated analytical instances.
Update Existing Objects Only
- Revit physical instance with an existing analytical instance - This option ignores any new physical objects with no associated analytical instances

Enhancement: Warning when manually mapping to a non-structural family (TSD-16131)

The integrator software has been enhanced to show a warning when the user performs manual mapping to a non-structural family (e.g. Columns rather than Structural Columns).

Fig 3. Dialog encountered when selecting a non-Structural Column family.

Other Issues

Other minor issues have been addressed based on your feedback. Thank you.

Note: The number in brackets after an item denotes an internal reference number. This can be quoted to your local Support Department should further information on an item be required.
