Create chamfers in drawings
You can create chamfers between two lines using a distance that you specify. You can create both straight and round chamfers.
-
Do one of the
following:
-
To create a straight chamfer, on the Drawing tab, click
Create straight chamfer.
Enter the distance that you want to have between the two lines (the length of the chamfer line) in the displayed dialog.
-
To create a round chamfer, on the Drawing tab, click
Create round chamfer.
Enter the desired radius in the displayed dialog.
-
Example

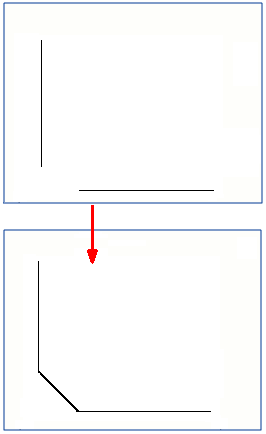

Example of a straight chamfer:

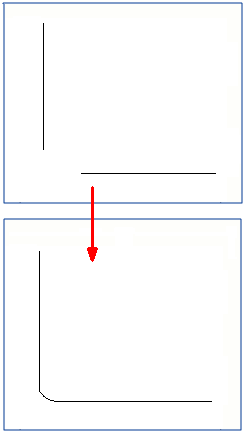

Example of a round chamfer:
