XS_REBAR_END_SYMBOL_MIN_SIZE
Category in Advanced options dialog: Concrete detailing

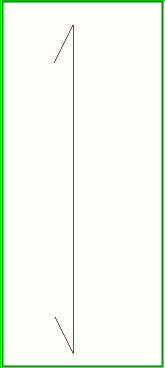

Use this advanced option to increase the size of the
reinforcing bar end symbols in drawings (in drawing units) in order to see them more
clearly. Works for 45 or 135 degree symbols. The default value is 2.
The value set for this advanced option is multiplied by the view scale. If the resulting value is bigger than the default size (diameter of the reinforcing bar), then it will be used as the symbol size. Otherwise the default value is used. This means that to make the symbol as small as possible, leave the value out or use zero (0).
This advanced option can be used together with the advanced option
XS_REBAR_BEND_MARK_SYMBOL_MIN_SIZE, which is used for increasing the size of the reinforcing bar bend symbols.
This advanced option is model specific and the setting is saved in the options database.
