XS_BEBAR_BENT_MESH_PULLOUT_DIMENSIONS_INCLUDE_LONGITUDINAL_BARS
Category in Advanced options dialog Drawing properties
This advanced option controls whether longitudinal bars are taken into account in the dimensions shown in a rebar pull-out picture for a bent mesh. Set this advanced option to TRUE to take into account the longitudinal bars, and FALSE to ignore them. FALSE is the default value. This advanced option affects pull-out pictures in marks and templates.
This advanced option is model specific and the setting is saved in the options database.

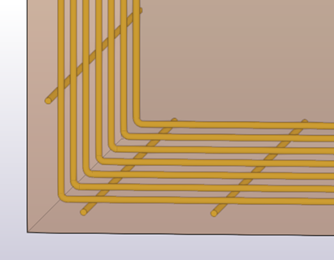

Below is an example of a bent mesh, which has longitudinal bars outside of crossing bars.

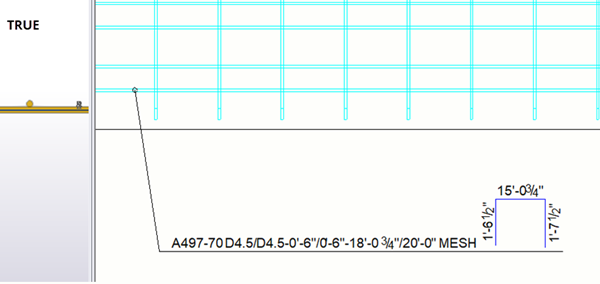

In the example below, longitudinal bars are taken into account in dimensions.

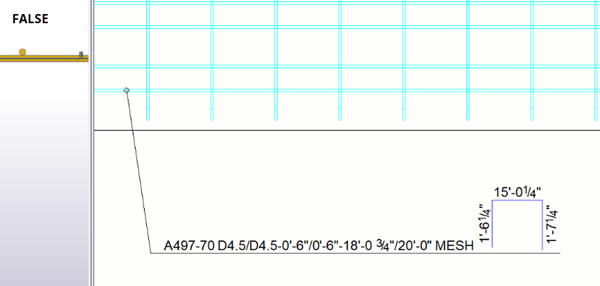

In the example below, longitudinal bars are not taken into account in dimensions.
