Tower member (S63)

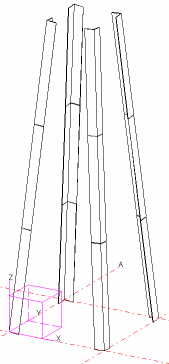

Creates the 4 legs of a tower, using angle profiles. The legs form a square or rectangular base.
Parts created
Legs (4)
Use for
|
Situation |
Description |
|---|---|
|
|
Before you start
Check the current work plane, as it affects the position of the tower. For more information, read Position of the tower (S43, S63)
Defining properties
Use the following tabs in the component dialog box to define the properties of the parts this component creates:
|
Tab |
Contents |
See also |
|---|---|---|
|
Picture |
Properties of angle profiles, quantity of profiles in each leg, lift length, option to tile profiles. |
|
|
Parts |
||
|
Parameters |
Gaps between angle profiles |
Picking order
Pick a point to indicate the lower left corner of the tower.
