XS_DO_NOT_EXTEND_DIMENSION_LINES_THROUGH_ALL_HOLES
Category in Advanced options dialog: Dimensioning - bolts
Set this advanced option to
TRUE (default) to prevent dimension lines from extending through all holes in a bolt group. If you wish to extend the dimension lines, set this advanced option to
FALSE.

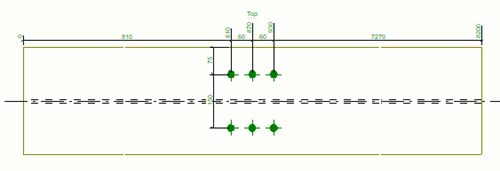

TRUE:

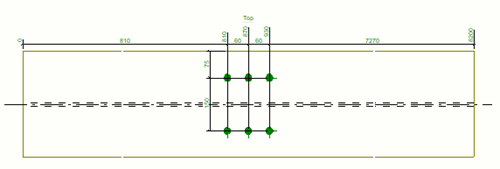

FALSE:
This advanced option is model specific and the setting is saved in the options database.
