You can create graphical templates to be used for
.pdf reports.
-
On the
File menu, select
.
-
Select
.
-
Click
.
-
In

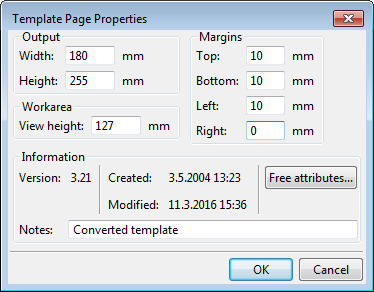

Template page properties dialog box, set the page size to match the target page size (for example A4):
-
Add new rows and value fields to get the required data from your Tekla Structures database. For more information about adding new rows and value fields, see
Create a template.
-
Click
, and save the report with the file name extension
.pdf.rpt.
-
Copy the new template to your template folder, such as model or your company settings folder (XS_FIRM).
You can now create a .pdf report using the new .pdf
report template. For more information, see Create a report.
Example .pdf report
In this report example, the following page size is used:

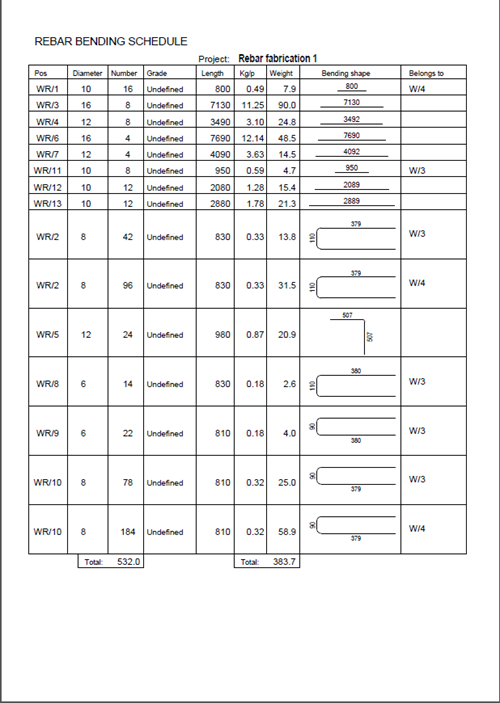

Below is an example of a report that has been
created using this particular report template.
To open the report in a browser,
click here.
