Railing beam to beam (88)

Railing beam to beam (88) connects rail profiles of adjacent railings to each other. The rails have to reside so that the intersection is found on the projection plane.

Objects created

Rail extension profile

Use for


Situation	Description
	Adjacent railings connected to each other

Selection order

Select the main part.
Select the seoncdary part.

The connection is created automatically when the secondary part is selected.

Part identification key


	Description
1	Extension profile

Picture tab

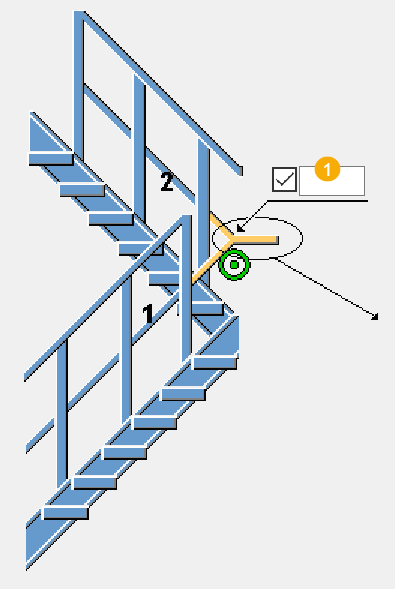

Use the Picture tab to control the geometry of the connection.

Dimensions


	Description
1	Vertical radius of the extension part. By default, the radius is zero.


	Description	Default
1	Bending radius of the extension part.	By default, the radius is zero.
2	Horizontal length of the extension part.	`200 mm`

Parts tab

Use the Parts tab to define the part properties.

Parts


Option	Description	Default
Profile	Select the profile from the profile catalog.	Main part profile


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.

Parameters tab

Use the Parameters tab to define the method of construction for the connection.

Method of construction


Option	Description
Create	A new railing part is created to connect the main and secondary parts. This is the default option.
Extend	The railing is created as three tubes welded together.
Extend polybeam	One polybeam is created.

General tab

Click the link below to find out more:

General tab

Analysis tab

Click the link below to find out more:

Analysis tab

Welds

Click the link below to find out more:

Create welds
