Stanchions - Railings - Kick plates (S86)

Stanchions - Railings - Kick plates (S86) uses three other components, Stanchions (S76), Railings (S77), and Kickplate (S75) to create the stanchions, railings, a grab rail, and a kick plate. The component can also create only the railings and kick plates if the stanchions already exist.

Objects created

Stanchions
Kick plate
Railings
Grab rail

Use for


Situation	Description
	Stanchions, railings, and kick plate are created.

Before you start

Create stringers using the Stairs (S71) component, for example.

Selection order

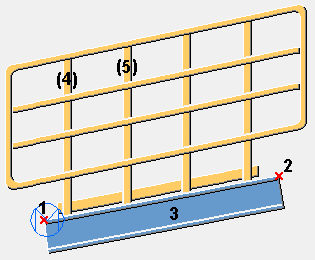

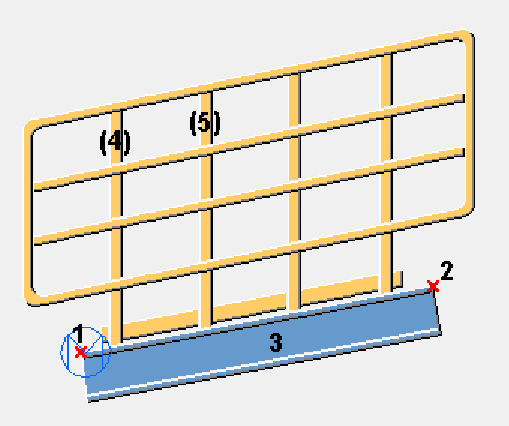

Pick the start point for the railing.
Pick the end point for the railing.
Select the first stair stringer.

Select only one stringer, and ignore the other, if the stringers are part of a stair component and if the Stair parts selection setting in the stanchion component is set to Use all.
Select the first stanchion if stanchions exist.
Select the second stanchion.

Ignore the other stanchions, if the stanchions are part of a stanchion component and if the Stanchion selection setting in the railings and in the kick plate component is set to Use all.

Note:

If you modify the Stanchions - Railings - Kick plates (S86) component, all connected components will be deleted.

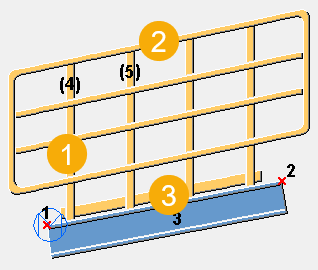

Part identification key


	Description
1	Stanchion
2	Railing
3	Kick plate

Picture tab

The Picture tab shows the stanchions, railings, and kick plates created by the component.

Parts tab

Use the Parts tab to select the components that are used for creating the stanchions, railings, and kick plates.

Components


Option	Description
Stanchions	Select the component and a suitable attribute file. The default component is Stanchions (S76).
Railings	Select the component and a suitable attribute file. The default component is Railings (S77).
Grab rail	Select the component and a suitable attribute file. The default component is Railings (S77).
Kickplate	Select the component and a suitable attribute file. The default component is Kickplate (S75).

Parameters tab

Use the Parameters tab to define whether stanchions, railings, grab rail, and kick plate are created.

Stanchions


Option	Description
	Default Stanchions are created. AutoDefaults can change this option.
	Stanchions are not created.
	Stanchions are created.

Railings


Option	Description
	Default Railings are created. AutoDefaults can change this option.
	Railings are not created.
	Railings are created.

Grab rail


Option	Description
	Default Grab rail is not created. AutoDefaults can change this option.
	Grab rail is not created.
	Grab rail is created.

Kick plate


Option	Description
	Default Kick plate is created.
	Kick plate is not created.
	Kick plate is created.
