You can indicate the location of the center of gravity (COG) in single-part, assembly, and cast unit drawings by creating COG dimensions and a COG symbol at the center of gravity. You can also create COG dimensions in section views. COG dimensions will be automatically updated if the single part, assembly, or cast unit changes. The COG dimensions can also be cloned.

1. On the Dimensioning tab in an open drawing, click COG .

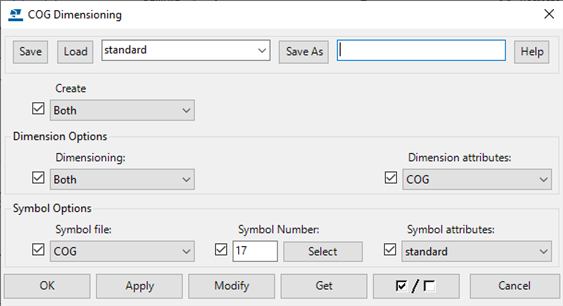

2. Modify the options as required:



   • In Create, select Symbol to see only the COG symbol, or Dimensions to see only COG dimensions. To see both, select Both.





   • In Dimensioning, select to create Horizontal or Vertical dimensions, or Both.

   • In Dimension attributes, load the predefined dimension properties.

     By default, a property file called "COG" is used. The representation (size, color, etc.) of the COG dimensions are read from the dimension property file that you load. The dimension unit, format and accuracy also come from this property file. To create and save a dimension property files, in an open drawing, open the property pane object list and select Straight dimension, modify the properties as required, and save the properties with a new name. For example, you may create a special COG dimension property file to change the color or arrow type, and load the saved settings in Dimension attributes.

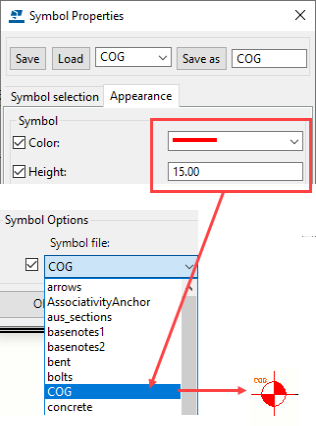

   • In Symbol Options, you can change the Symbol file in use by selecting another symbol file in the list. To change the COG symbol, click Select, and select another symbol. To load other symbol settings from another symbol settings file, select another file from the Symbol attributes list.

     You can access the symbol options only if you have selected Both or Symbol for Create. The representation (height, color, etc.) of the symbol are read from the symbol property file you load in Symbol attributes.



3. Click OK.

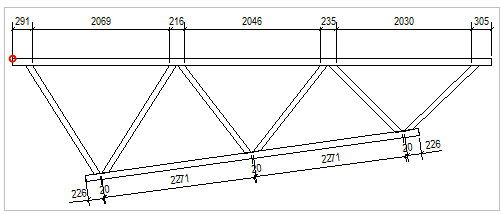

4. Pick the first point to specify the origin of the dimensions.

   The origin is the point from which you want to measure the location of the center of gravity. This point must be located within the view frame.

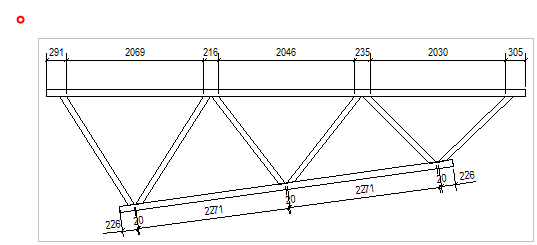

5. Pick the second point to place the dimensions.

   This point may fall outside the view frame.

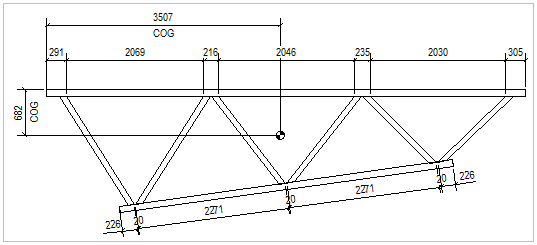

   The example below shows the created dimensions.

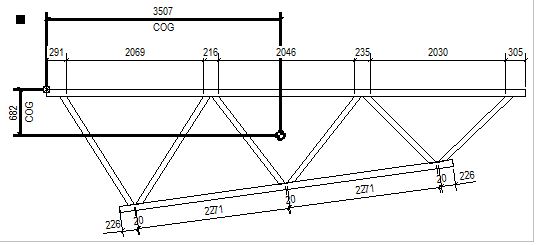

6. When the dimension is selected, handles are shown at the dimension origin and the dimension location. You can drag these handles to adjust the origin or the location, or move them using the standard editing commands.
