XS_​MULTIPLIER_​SEPARATOR_​FOR_​MERGED_​PART_​MARK

Category in Advanced options dialog box: Marking - parts

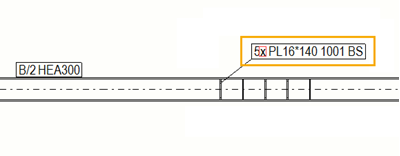

Use to define the separator in merged part marks. The default value is x.

This advanced option is model specific and the setting is saved in the options database.

See also

Merge marks automatically

Merge marks
