Moving and cutting braces (S67)

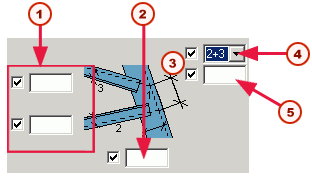

To move the ends of braces:
| Description | |
|---|---|
| 1 |
Define the bolt gage lines for the braces |
| 2 |
Define the bolt gage line for the tower leg |
| 3 |
Move points |
| 4 |
Indicate which brace(s) to move |
| 5 |
Enter the distance to move the point(s) where the gage lines intersect |
To cut the braces:
| Description | |
|---|---|
| 1 |
Enter the distance from the end of the brace(s) to the edge of the tower leg |
| 2 |
Select Yes to cut the brace(s) |
To move bolt groups:
| Description | |
|---|---|
| 1 |
Enter the distance from the first bolt in the group to the end of the brace |
