Tapered column base plate (1068)

Tapered column base plate (1068) creates a base plate detail to a tapered column.

Parts created

End plate
Web stiffeners (4)
Flange stiffeners (2) (optional)
Anchor rods
Extra plates connecting the anchor rods
Bolts
Welds

Use for


Situation	Example
	The detail uses four web stiffeners. Flange stiffeners are not created. The end plate is connected using four bolts, but you can use any number.
	The detail uses four web stiffeners and two flange stiffeners.

Before you start

Create a tapered column.

Selection order

Select the tapered column.
Pick a point to indicate the location of base plate.

Part identification key


	Description
1	End plate
2	Web stiffener
3	Flange stiffener

Picture tab

Use the Picture tab to define the dimensions of the base plate and stiffeners, the location of web stiffeners, and whether the column flange is fitted.

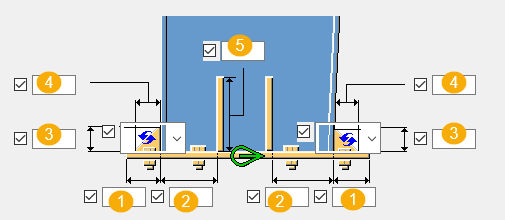

Dimensions


	Description
1	End plate edge distance to the column flange.
2	Web stiffener edge distance.
3	Flange stiffener height.
4	Flange stiffener width.
5	Web stiffener height.

Flange stiffener shape


Option	Description
	Default Line shape AutoDefaults can change this option.
	Line shape
	Square shape
	No stiffener

Flange cut


	Description	Default
1	Define the flange cut from the base plate edge.	`2 mm`

Flange stiffener chamfer dimensions


	Description
1	Horizontal chamfer dimension.
2	Vertical chamfer dimension.

Flange stiffener chamfer type


Option	Description
	Default No chamfers AutoDefaults can change this option.
	No chamfers
	Line chamfer
	Convex arc chamfer
	Concave arc chamfer

Column flange


Option	Description
	Column flange fitted to be level with the base plate.
	Column flange is perpendicular to column axis.

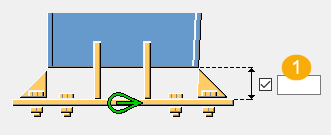

End plate offset


	Description
1	End plate offset from the main part bottom edge.

Parts tab

Use the Parts tab to define the properties of the end plate, web stiffeners, and flange stiffeners.

Parts


Option	Description
End plate	Thickness and width of the end plate.
Web stiffener	Thickness and width of the web stiffener.
Flange stiffener	Thickness of the flange stiffener.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.

Bolts tab

Use the Bolts tab to define the bolt properties, number of bolts, and spacing.

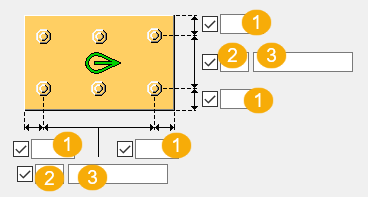

Bolt group dimensions


	Description
1	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
2	Number of bolts.
3	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.

Bolt basic properties


Option	Description	Default
Bolt size	Bolt diameter.	Available sizes are defined in the bolt assembly catalog.
Bolt standard	Bolt standard to be used inside the component.	Available standards are defined in the bolt assembly catalog.
Tolerance	Gap between the bolt and the hole.
Thread in mat	Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used.	`Yes`
Site/Workshop	Location where the bolts should be attached.	`Site`

Cut length

Defines the depth at which Tekla Structures searches for the sections of the bolted parts. You can determine whether the bolt will go through one flange or two.

Comment

You can define a comment.

Slotted holes

You can define slotted, oversized, or tapped holes.


Option	Description	Default
1	Vertical dimension of slotted hole.	`0`, which results in a round hole.
2	Horizontal dimension of slotted hole, or allowance for oversized holes.	`0`, which results in a round hole.
Hole type	Slotted creates slotted holes. Oversized creates oversized holes. No hole does not create holes. Tapped creates tapped holes.
Rotate Slots	When the hole type is Slotted, this option rotates the slotted holes.
Slots in	Part(s) in which slotted holes are created. The options depend on the component in question.

Bolt assembly

The selected check boxes define which component objects (bolt, washers, and nuts) are used in the bolt assembly.

If you want to create a hole only, clear all the check boxes.

To modify the bolt assembly in an existing component, select the Effect in modify check box and click Modify.

Bolt length increase

Define how much the bolt length is increased. Use this option when, for example, painting requires the bolt length to be increased.

Parameters tab

Use the Parameters tab to define a component.

Using additional components

You can use additional system or custom components to modify the column end or the base plate. For example, you can create special backing plates, weld preparations, and weld access holes for the column end.

If you use additional system or custom components, you need to manage the column end or the base plate properties in the additional component in question. When using several components, there may be multiple welds and cuts.


Option	Description
Component	Select a system or a custom component from the Applications & components catalog.
Attributes	Select an attribute file for the component.
Input	Define to which parts the selected component is applied. Default is the same as Base + Column. Column sets the column as the main part. Use this option for details. Column + Base sets the column as the main part and the base plate as the secondary part. Base + Column sets the base plate as the main part and the column as the secondary part. Base sets the base plate as the main part.

Anchor rods tab

Use the Anchor rods tab to define the properties of the rod, nut, washer, cast plate, and grout.

Anchor rod dimensions


Option	Description
Rod profile	Anchor rod profile. You can add a comment about the part.
Nut profile	Nut profile.
Washer profile	Washer profile.
Plate washer	Plate washer thickness, width and height.
Cast plate	Cast plate thickness, width and height.
Grout	Grout thickness. Grouting helps you to model columns to the top of concrete parts and place the base plate correctly. It also makes it easier to dimension the detail in GA drawings. The cast unit type of the grout is Cast in place. By default, no grouting is created. Select whether the grouting is created with or without slopes above or below the detail creation point. This also affects the shim plates.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.
Class	Part class number.

Base plate with

Select whether to create the base plate with bolts, anchor rods, or a custom component.

By default, the base plate is created with Bolts.

Anchor rod dimensions


	Description	Default
1	Size or the length of the nut.	`anchor rod diameter`
2	Size or the thickness of the washer.	`half of nut size`
3	Gap between the base plate and nut or washer created above the base plate.
4	Length of the anchor rod.	`500 mm`
5	Length of the anchor rod above the base plate.	`50 mm`
6	Distance between the cast plate and the base plate.	`60 mm`
7	Length of the upper thread.	`0 mm`
8	Anchor rod types.
9	Anchor rod dimensions.

Anchor rod types


Option	Description
	Default Type 1 AutoDefaults can change this option.
	Type 1
	a Radius of the hook b Width of the hook	a = `2*anchor bar diameter` b = `1/5 of anchor bar length`
	a Radius of the hook b Width of the hook c Height of the hook	c = `same as width of the hook`
	d Length of the anchor rod below the extra plate e Length of the lower thread	d = `2nut size` e = `4nut size plus thickness of extra plate`

Hook direction


Option	Description
	Default Type 1 AutoDefaults can change this option.
	Type 1
	Type 2
	Type 3
	Type 4

Bolting direction

You can define the bolting direction if you have created the base plate with bolts.


Option	Description
	Default Bolting direction 1 AutoDefaults can change this option.
	Bolting direction 1
	Bolting direction 2

Cast plate holes tolerance


Option	Description	Default
Cast plate holes tolerance	Tolerance of the cast plate holes.	`same as bolt tolerance`

Washer hole tolerance


Option	Description
Create hole in washer	By default, a hole is not created in the washer. Tolerance of the washer hole.

Create assembly from all anchors

Define whether anchors are included in an anchor rod assembly. You can also include leveling plates into the assembly.

Create



1	Create the nut profile.
2	Create the washer profile.
3	Create the washer plate.

Anchor rod assembly

Define which parts of the anchor rod are included in the anchor rod assembly.

You can weld the washer plates above and below the base plate.

Extra plates tab

Use the Extra plates tab to to control the placement, rotation, and type of the profiles (extra profile 1) created at the bottom of each anchor bar and the profiles (extra profile 2) that connect rows of anchor bars.

Part dimensions


Option	Description
Extra profile 1	First extra profile by selecting it from the profile catalog.
Extra profile 2	Second extra profile by selecting it from the profile catalog.


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.
Class	Part class number.
Finish	Describes how the part surface has been treated.

Edge distance of extra profile 1


	Description
1	Edge distance of extra profile 1.

Type and direction of extra profile 1


Option	Description
	Default Type 1 AutoDefaults can change this option.
	Type 1
	Type 2
	Type 3

Edge distance of extra profile 2


Option	Description	Default
1	Distance of extra profile 2 from the axis of the anchor bar.	`Half of the nut size or anchor bar diameter`

Extra profile 2 type


Option	Description
	Default Type 1 AutoDefaults can change this option.
	Type 1
	Type 2
	Type 3
	Type 4
	Type 5
	Type 6

Length of extra profile 2


	Description
1	Length of extra profile 2 from the axis of the anchor bar.

Direction of extra profile 2


Option	Description
	Default Type 1 AutoDefaults can change this option.
	Type 1
	Type 2

Extra profile 1 properties


Option	Description	Default
Hole tolerance	Hole tolerance of extra profile 1.	`Same as bolt tolerance`
Circular profile height	Height of circular extra profile 1.
Profile rotation	Profile rotation of extra profile 1.	`Front`

Extra profile 2 rotation


Option	Description	Default
Extra profile 2 rotation	Profile rotation of extra profile 2.	`Front`

General tab

Click the link below to find out more:

General tab

Analysis tab

Click the link below to find out more:

Analysis tab

Welds

Click the link below to find out more:

Create welds
