XS_USE_SCREW_POINT_ELEVATION_DIM
Category
Dimensioning: Bolts
Set this advanced option to TRUE to display the elevation dimensions of a column to the working points of a neighboring part. If you set it to FALSE, the elevation dimensions are displayed at the ends of the column. The default value is
FALSE.
This advanced option is model specific and the setting is saved in the options database.
Example

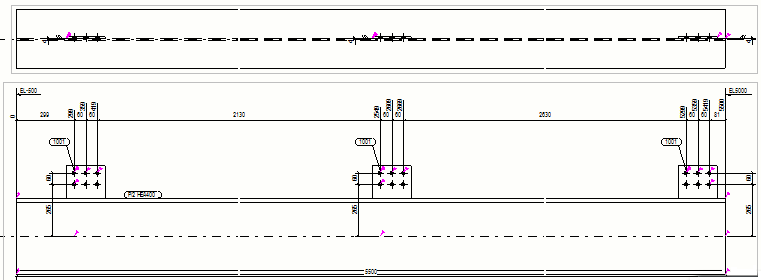

An example, where the value is TRUE:

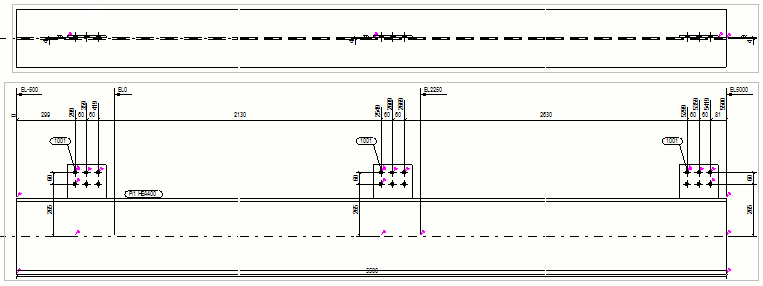

An example, where the value is FALSE:
