PEB Knee joint (S93)

PEB Knee joint (S93) creates a knee connection between a rafter and a column. The end plate connection can be located horizontally, vertically, or perpendicular to the rafter.

Objects created

End plates
Web stiffener
Flange stiffeners (2)
Inner stiffeners (4)
Outer stiffeners (4)
Diagonal stiffeners or web plate
Bolts
Welds

Use for


Situation	Description
	Vertical knee connection with triangular flange stiffeners, and inner and outer stiffeners. Web is strengthened with diagonal stiffeners.
	Horizontal knee connection with inner and outer stiffeners. Web is strengthened with diagonal stiffeners.

Selection order

Select the column.
Select the rafter.
Click the middle mouse button to create the connection.

Part identification key


	Description
1	End plate
2	Diagonal stiffener
3	Web plate
4	Web stiffener
5	External stiffener
6	Inner stiffener
7	Knee stiffener
8	Knee end plate
9	Corner lap stiffener

Picture tab

Use the Picture tab to define the dimensions and the connection type.

Connection type

Select how the connection is created:

Horizontal
Perpendicular
Vertical

Create web plate or diagonal stiffener


Option	Description
	Default Web plate is created. AutoDefaults can change this option.
	Diagonal stiffener is created.
	Web plate is created.

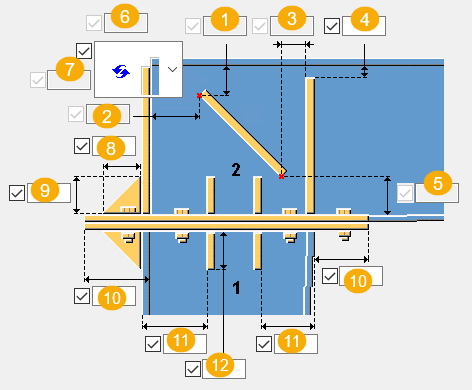

Dimensions


	Description
1	Vertical distance of the diagonal stiffener upper input point from the secondary part web.
2	Horizontal distance of the diagonal stiffener upper input point from the secondary part flange.
3	Horizontal distance of the diagonal stiffener lower input point from the knee stiffener.
4	Knee stiffener edge distance from the secondary part web.
5	Vertical distance of the diagonal stiffener lower input point from the secondary part web.
6	Horizontal dimension of the corner lap stiffener.
7	Vertical dimension of the corner lap stiffener. If the corner lap stiffener is not created, this is the knee end plate dimension from the secondary part flange.
8	Horizontal dimension of the external stiffener.
9	Vertical dimension of the external stiffener.
10	Dimension of the end plate extension from the main part web.
11	Web stiffener edge distance from the main part flange.
12	Web stiffener dimension on the main part side.

Chamfer dimensions


	Description
1	Horizontal chamfer dimension
2	Vertical chamfer dimension

Chamfer shape


Option	Description
	Default No chamfer AutoDefaults can change this option.
	No chamfer
	Line chamfer
	Convex chamfer
	Concave chamfer

Parts tab

Use the Parts tab to define the properties of plates and stiffeners.

Parts


Option	Description
End plate	Thickness and width of the end plate
Diagonal stiffener	Thickness and width of the diagonal stiffener
Web plate	Thickness of the web plate
Web stiffener	Thickness and width of the web stiffeners
External stiffener	Thickness of the external stiffener
Internal stiffener	Thickness, width and height of the internal stiffener
Knee stiffener	Thickness and width of the knee stiffener
Knee end plate	Thickness and width of the knee end plate
Corner lap stiffener	Thickness of the corner lap stiffener


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.

Stiffener creation


Option	Description
	Select whether bevel, square, or no flange stiffeners are created. Bevel is the default. AutoDefaults can change this option.
	Select how many web stiffeners are created, or whether they are created at all. Two stiffeners is the default. AutoDefaults can change this option.
	Select whether bevel, square, or no inner stiffeners are created. Bevel is the default. AutoDefaults can change this option.

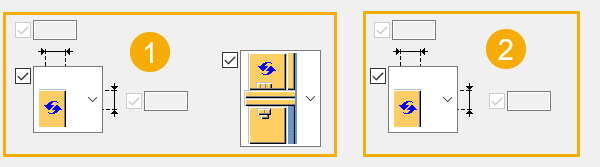

Stiffener creation

Select how many stiffeners are created, define the shape of the stiffeners, and the chamfer dimensions.


	Description
1	Define the external stiffeners.
2	Define the inner stiffeners in the corner between the main and the secondary part.

Chamfer dimensions


	Description
1	Horizontal chamfer dimension
2	Vertical chamfer dimension

Chamfer shape


Option	Description
	Default No chamfer AutoDefaults can change this option.
	No chamfer
	Line chamfer
	Convex chamfer
	Concave chamfer

Bolts tab

Use the Bolts tab to define the bolt properties, number of bolts, and spacing. You can select whether outer and inner bolts are created.

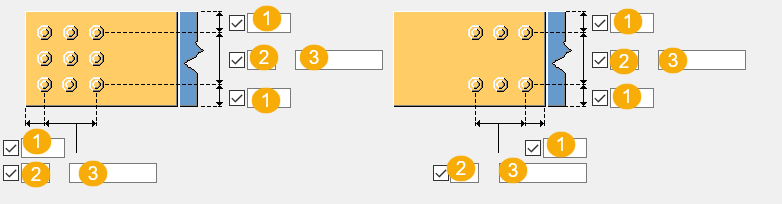

Bolt group dimensions


	Description
1	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
2	Number of bolts.
3	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.

Bolt basic properties


Option	Description	Default
Bolt size	Bolt diameter.	Available sizes are defined in the bolt assembly catalog.
Bolt standard	Bolt standard to be used inside the component.	Available standards are defined in the bolt assembly catalog.
Tolerance	Gap between the bolt and the hole.
Thread in mat	Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used.	`Yes`
Site/Workshop	Location where the bolts should be attached.	`Site`

Slotted holes

You can define slotted, oversized, or tapped holes.


Option	Description	Default
1	Vertical dimension of slotted hole.	`0`, which results in a round hole.
2	Horizontal dimension of slotted hole, or allowance for oversized holes.	`0`, which results in a round hole.
Hole type	Slotted creates slotted holes. Oversized creates oversized holes. No hole does not create holes. Tapped creates tapped holes.
Rotate Slots	When the hole type is Slotted, this option rotates the slotted holes.
Slots in	Part(s) in which slotted holes are created. The options depend on the component in question.

Bolt assembly

The selected check boxes define which component objects (bolt, washers, and nuts) are used in the bolt assembly.

If you want to create a hole only, clear all the check boxes.

To modify the bolt assembly in an existing component, select the Effect in modify checkbox and click Modify.

Bolt length increase

Define how much the bolt length is increased. Use this option when, for example, painting requires the bolt length to be increased.

Welds

Click the link below to find out more:

Create welds
