Examples of single-part drawings
Single-part drawings are workshop drawings showing fabrication information for one part (usually without welds). Single-part drawings usually use small sheet sizes, for example, A4 or imperial standard size 8.5" x 11.5".
Click the links below to find out more about creating single-part drawings:
Quick start to Tekla Structures drawings
Create single-part, assembly, or cast unit drawings through Quick launch
Create single-part, assembly and cast unit drawings using saved settings in Master drawing catalog
Create drawings using rule sets or wizards in Master drawing catalog
For details about single-part drawing properties, see Single-part drawing properties.
Examples of single-part drawings

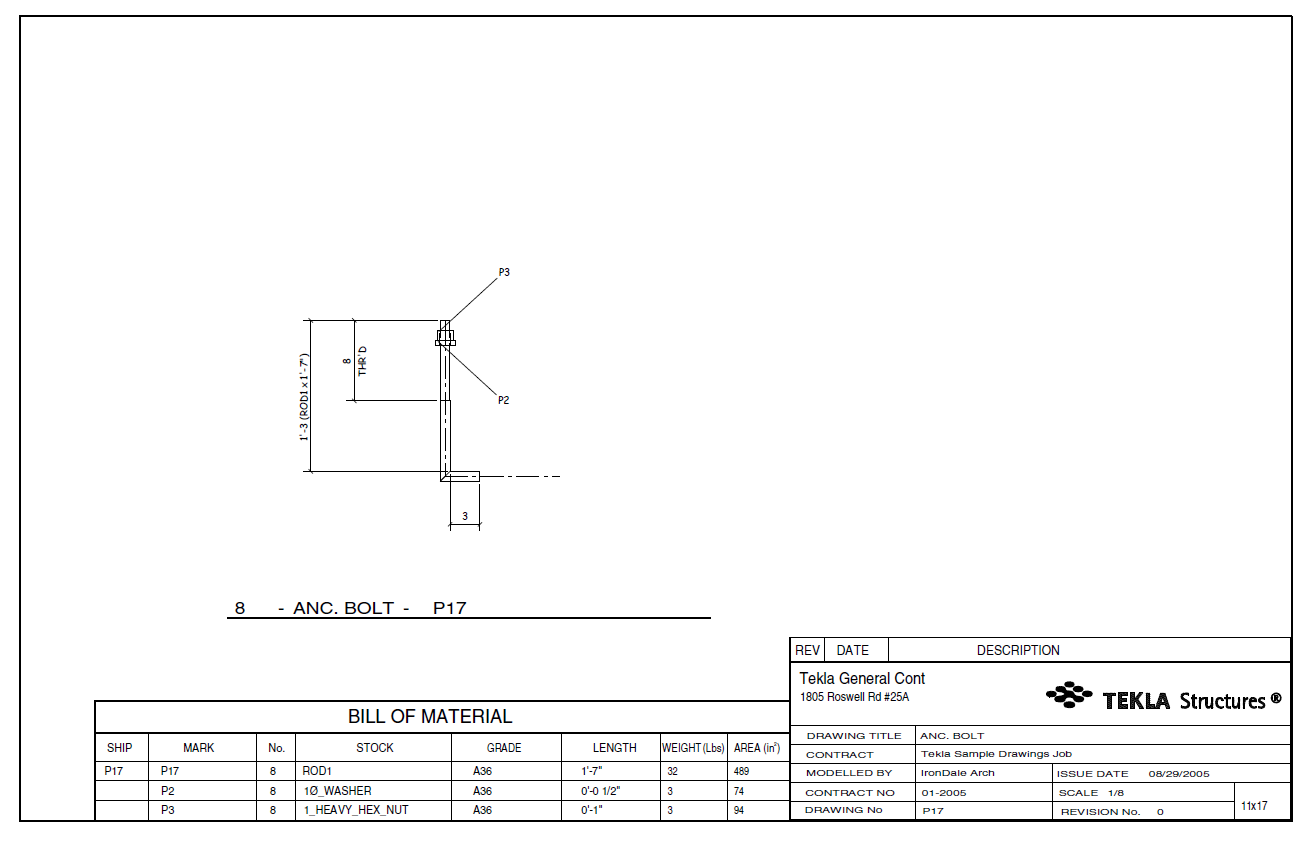

Single-part drawing presenting an anchor bolt:

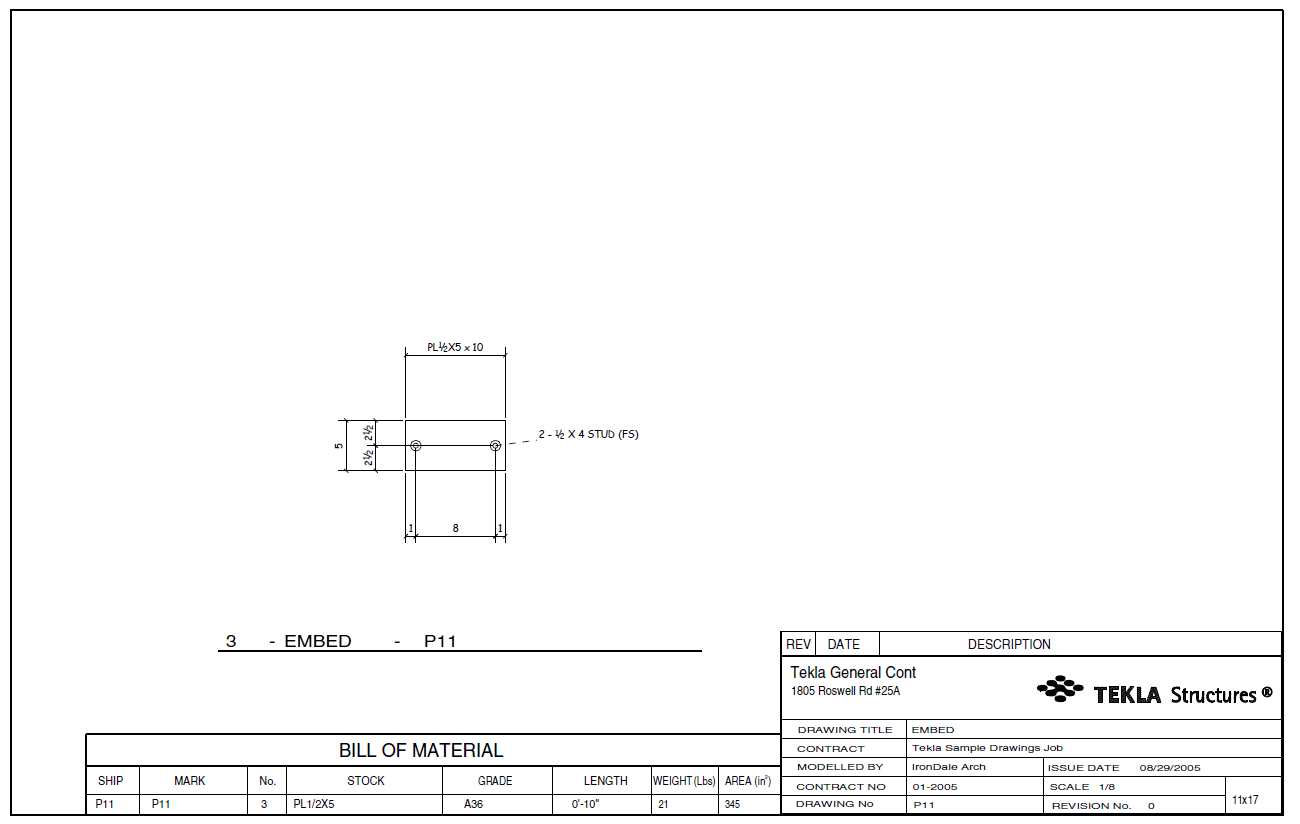

Single-part drawing presenting an embed:

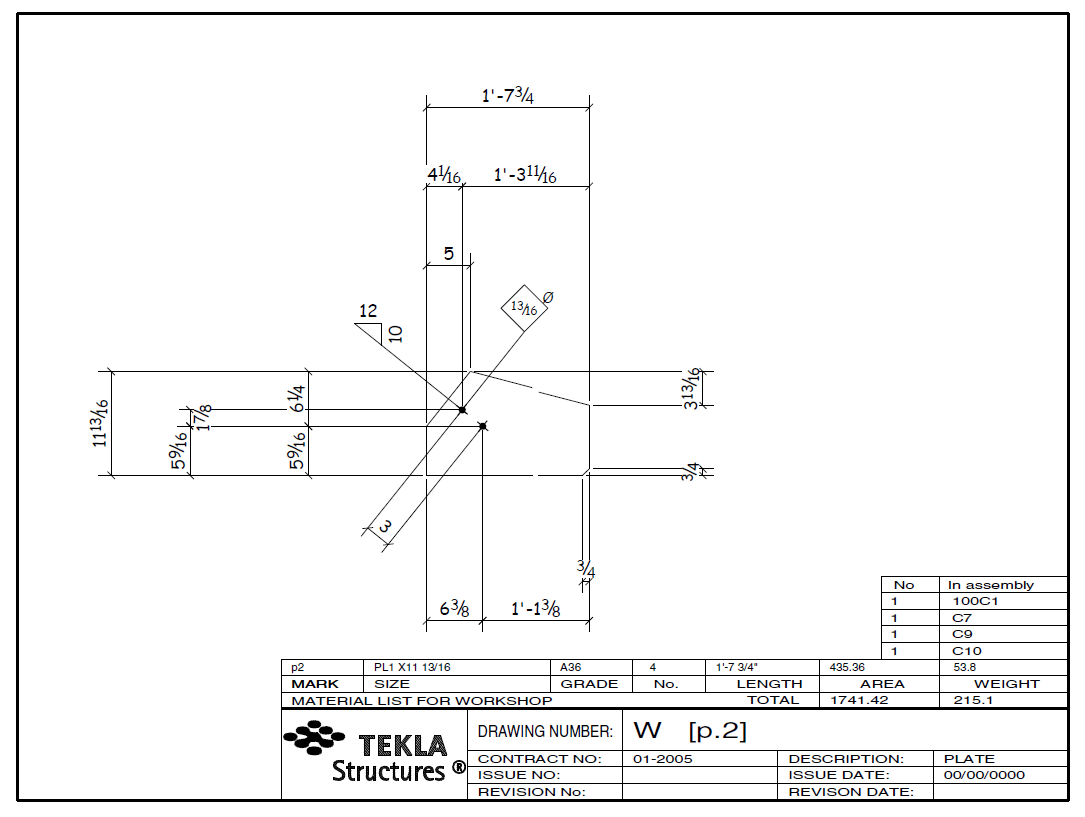

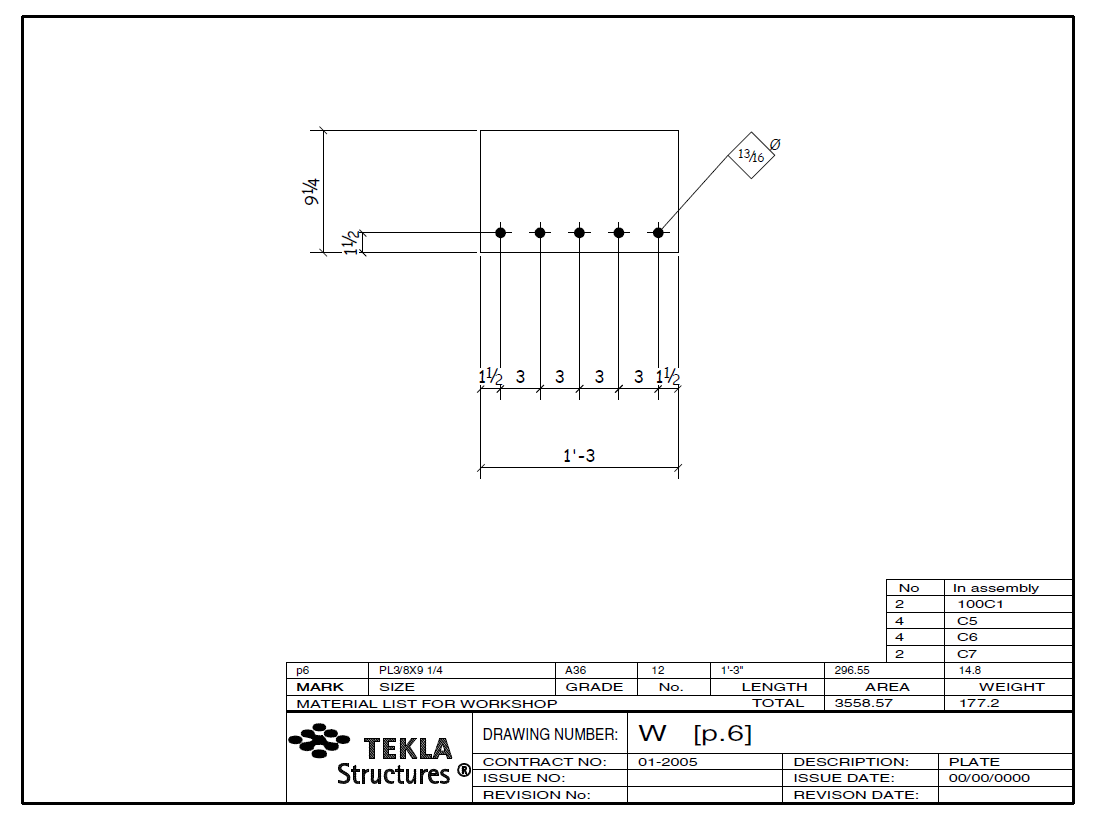

Single-part drawings presenting plates (three examples):
