XS_REBAR_REVERSE_END_SYMBOLS
Category in Advanced options dialog: Concrete detailing

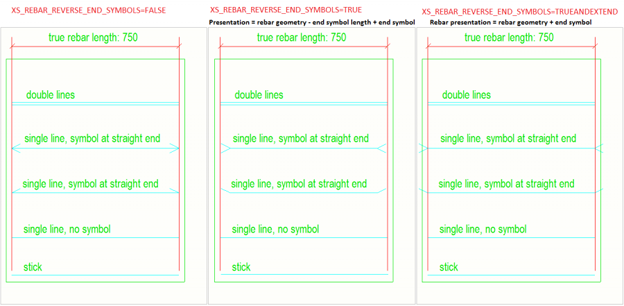

Use this advanced option to reverse the reinforcing bar
end symbols to a different direction. When this advanced option is set to TRUE, the end symbol is
drawn at a 135 degree angle (used commonly in Norway). If you use single line
visualization and no symbol at straight end, use the value TRUEANDEXTEND. If you use
TRUE for these kinds
of reinforcing bars, they will be drawn too short. The default value is
FALSE.
This advanced option is role specific. When the type SYSTEM(ROLE) is in use, the default value is used. When the type MODEL(ROLE) or DRAWING(ROLE) is in use, you can change the value, which is then the same for all users in the current model.
