XS_DRAW_BOLTS_THROUGH_NEIGHBOUR_PARTS
Category in Advanced options dialog: Drawing properties
Set this advanced option to
TRUE to draw the bolt parts that coincide with neighboring parts. If you do not want to draw these bolt parts, set it to
FALSE.
The default value is
FALSE.
This advanced option is model specific and the setting is saved in the options database.

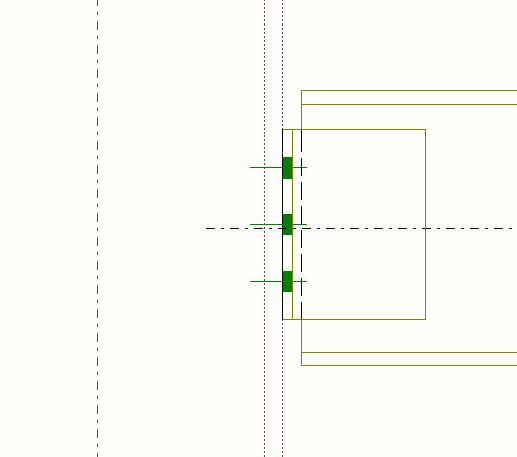

The following example shows how the drawing looks like when you set this advanced option to
FALSE.

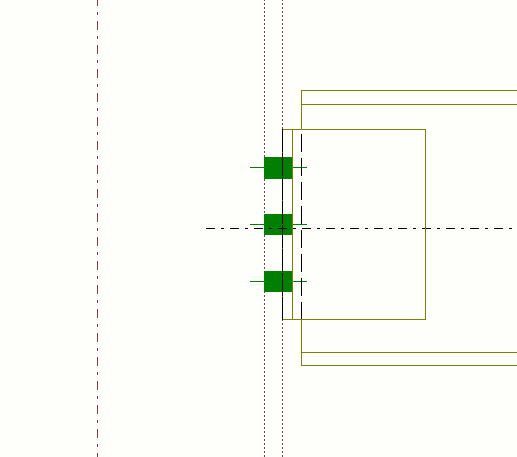

In the following example, the advanced option is set to
TRUE.
