XS_HIDDEN_USE_BOLT_PLANES
Category in Advanced options dialog: Drawing properties
Set this advanced option to
TRUE to hide lines behind a bolt nut (with
Exact part representation). To show the lines, set it to
FALSE (default).
This advanced option is user specific and the setting is saved in options.bin under the user folder, for example, in C:\Users\<user>\AppData\Local\Trimble\Tekla Structures\<version>\UserSettings. Restart Tekla Structures to activate the new value.

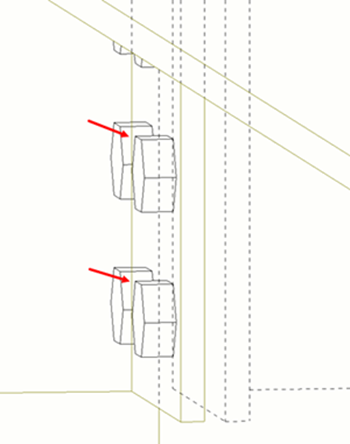

TRUE:

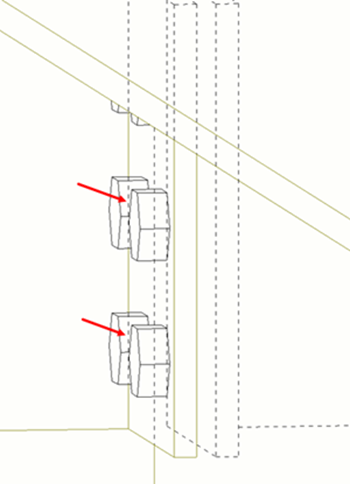

FALSE:
