Create fillets in drawings

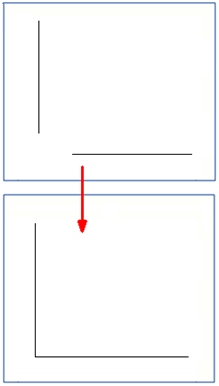

You can connect two intersecting lines by extending the two selected lines to their intersection point by creating a fillet. If no intersection point is found or if it is outside the drawing, nothing will be done.

This feature is for lines that have been drawn manually in a drawing, not for part lines.

Open a drawing.
Select two intersecting lines.
On the Sketching tab, click Create fillet.
