Auto position (S67)
Auto position (S67) adjusts the position of one or two braces connected to a tower leg, and cuts braces.
Note:
Use Auto position (S67) when you have completed all other work on a model. Changing the model may override the adjustments you make using this component.
Before you start
Create one or two braces and connect them to a tower leg.
Selection order
-
Select the tower leg.
-
Select the first brace.
-
Select the second brace (optional).
-
Click the middle mouse button to finish.
Picture tab

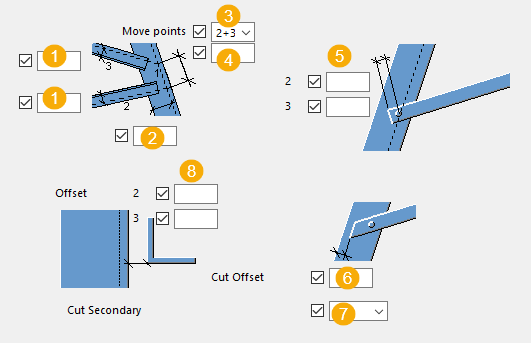

Use the Picture tab to define the position of braces and cut dimensions.
Dimensions
| Description | |
|---|---|
|
1 |
Define the bolt gage lines for the braces. |
|
2 |
Define the bolt gage line for the tower leg. |
|
3 |
Select which braces to move. |
|
4 |
Enter the distance to move the points where the gage lines intersect. |
|
5 |
Enter the distance from the first bolt in the group to the end of the brace. |
|
6 |
Enter the distance from the end of the braces to the edge of the tower leg. |
|
7 |
Select Yes to cut the braces. |
|
8 |
Define the cut dimension for the braces. |
