Column tube seating (100)
Column tube seating (100) creates a connection between one or two RHS rails and a column. The RHS profiles are located at the top of the column.
Objects created
-
End plate
-
Bolts
-
Welds
Use for
| Situation | Description |
|---|---|
|
|
Rails connected to a column. To ensure that the bolt can be tightened, the connection can create either a 45-degree cut in the rail or larger holes in the opposite flange for the wrench to go through. |
|
|
Tube steel rails to a column, with cope or hole bolt access options. |
Selection order
-
Select the main part.
-
Select the secondary part.
-
If needed, select the second secondary part.
-
Click the middle mouse button to create the component.
Part identification key

| Description | |
|---|---|
|
1 |
End plate |

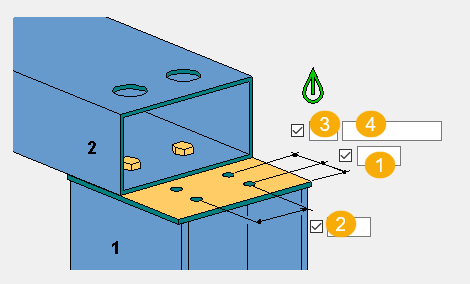

Picture tab
Use the Picture tab to define the edge distance and spacing of holes.
Dimensions

| Description | |
|---|---|
|
1 |
Bolt edge distance |
|
2 |
Bolt spacing |
|
3 |
Number of bolts |
|
4 |
Bolt spacing |
Parts tab
Use the Parts tab to define the part properties.
Parts
| Option | Description |
|---|---|
|
End plate |
Thickness, width, and height of the end plate. |
|
Option |
Description |
Default |
|---|---|---|
|
Pos_No |
Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number. |
The default part start number is defined in the Components settings in . |
|
Material |
Material grade. |
The default material is defined in the Part material box in the Components settings in . |
|
Name |
Name that is shown in drawings and reports. |
End plate offset
| Option | Description |
|---|---|
|
|
Define the offset for a full end plate. |
|
|
Define the offset for a partial end plate. |
Parameters tab
Use the Parameters tab to defne the beam cuts and holes.
Beam cut
| Option | Description |
|---|---|
|
|
Beam is not chamfered. |
|
|
Beam is chamfered. |
Beam position
| Option | Description |
|---|---|
|
|
Beam end is positioned at the column center. |
|
|
Beam end is offset from the column center. |
Dimensions
| Option | Description |
|---|---|
|
|
1 Beam edge distance from the column center line 2 Hole diameter If there is only one secondary part and you wish to create one large hole in the rail, do not enter any offset value. The rail is not cut in this situation. |
|
|

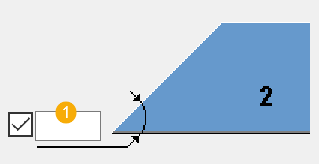

1 Chamfer degree |
Hole type
Define the type of the holes in the top flange of the rectangular hollow profile.
| Option | Description |
|---|---|
|
|
Bolts are created. |
|
|
Cuts are created. |
Hole creation
Define the hole creation when there is only one secondary part.
| Option | Description |
|---|---|
|
|
Holes are not created for the secondary part location. |
|
|
Holes are created for the secondary part location. |
Bolts tab
Use the Bolts tab to define the bolt properties.
Bolt basic properties
|
Option |
Description |
Default |
|---|---|---|
|
Bolt size |
Bolt diameter. |
Available sizes are defined in the bolt assembly catalog. |
|
Bolt standard |
Bolt standard to be used inside the component. |
Available standards are defined in the bolt assembly catalog. |
|
Tolerance |
Gap between the bolt and the hole. |
|
|
Thread in mat |
Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used. |
Yes |
|
Site/Workshop |
Location where the bolts should be attached. |
Site |
Bolt assembly
The selected check boxes define which component objects (bolt, washers, and nuts) are used in the bolt assembly.
If you want to create a hole only, clear all the check boxes.
To modify the bolt assembly in an existing component, select the Effect in modify check box and click Modify.
Bolt length increase
Define how much the bolt length is increased. Use this option when, for example, painting requires the bolt length to be increased.
General tab
Click the link below to find out more:
Analysis tab
Click the link below to find out more:
Welds
Click the link below to find out more:
