Requisition-specific reports

You can create different kinds of reports based on the current requisition. You can view the reports, print them, or export them to another file format.

  1. In the Requisition # dialog, click the Requisition ribbon tab.
  2. On the menu, select Reports or press Ctrl+R on the keyboard.

    The Requisition Report Filters dialog opens.

  3. To include only specific types of items, do the following (Optional):
    1. Select a filter type in the Type list, and click Select.

      The Filter dialog opens.

    2. Do one of the following depending on the filter type:
      • Click the arrow buttons to move the items that you want to include in the report to the Included list.
      • Type the maximum and minimum values for the items that you want to include.
    3. Click OK.
  4. Click Make Report.

    The Report Selection dialog opens.

  5. Select the report that you want to view, print, or export.
  6. Do one of the following:
    To Do this
    View the report Click View.

    The report opens in Tekla PowerFab Report Viewer.

    You can use the Email Excel and Email PDF buttons at the top of the Tekla PowerFab Report Viewer window to email the report.
    Print the report
    1. Change the number of the printed copies by clicking the plus (+) and minus (-) buttons.
    2. Click Print.

      The Select Printer dialog opens.

    3. Click a printer to select it.
    4. Click OK.
    Export the report
    1. Click Export

      The Export Options dialog opens.

    2. In the Export Format list, select an export format.
    3. To select the location where you want to save the exported file, click Browse.
    4. Browse to the location where you want to save the exported file, and click Save.

      You can modify the file name as needed.

    5. To attach the exported file to an email and send it to a recipient, select the Attach to Email checkbox.
    6. To open the file after exporting it, select the Open Exported Document checkbox.
    7. To export the file, click Export.

    If you have a large job for which data processing takes time, you can select the report to run and one of the following options:

    • View on completion
    • Print on completion
    • Export on completion

    When data processing is completed, the selected action takes place automatically.

    When running reports, they open in the Tekla PowerFab Report Viewer application. The application sometimes opens on a different monitor or remains minimized on the taskbar.

Export data from the report

To ensure that all data is exported from a Stimulsoft report to Microsoft Excel, follow the steps provided here.

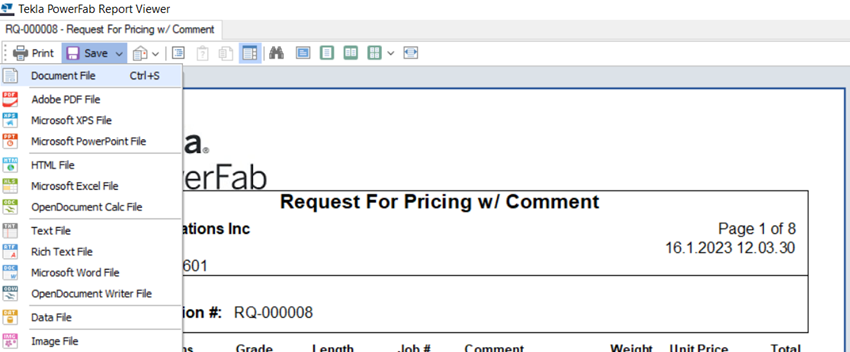

  1. In the report that you have open in Tekla PowerFab Report Viewer, click Save.
  2. In the context menu, select Microsoft Excel File.

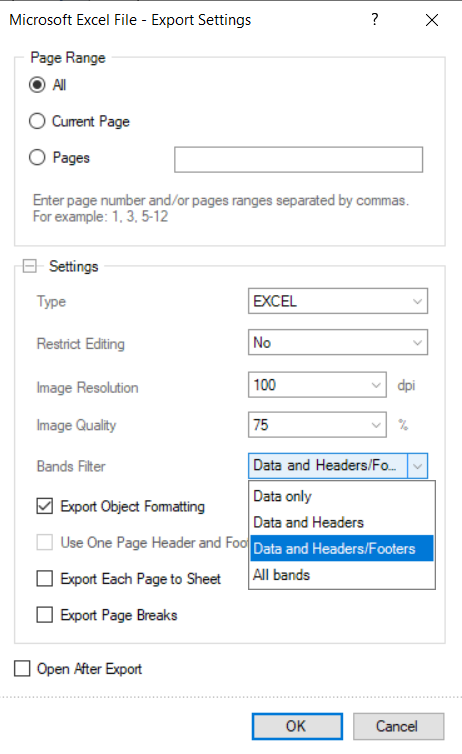

    The Microsoft Excel File - Export Settings dialog opens.

  3. On the Bands Filter dropdown menu, select Data and Headers/Footers.
  4. Click OK.

    You are prompted to save the data in a Microsoft Excel file. You can change the file name and the location here.

  5. To save the data, click Save.
