Checkered Plate Tread
2021
Tekla Structures
2020
Tekla Structures
Environment
United States (Imperial)
United States (Metric)
CATALOG NAME: Checkered Plate Tread
TYPE: SEAM
This custom component can be used inside other components such as:
System Component - Stairs (S71)
System Component - Ship Ladder
On the Pictures tab, you can adjust the geometry of the step and the location of the bolts as shown here.
There is also an option to change the tread type to one of the following. (Samples are shown at bottom of this page)
On the Parts tab, you can control the part prefix, numbering settings, material, and name. You can also choose whether the step is a bought out item or not and if so, you can enter the name or product number of the item. There are also a few more bolt fields which give you control over the bolt diameter, standard, tolerance, type, and horizontal slot.

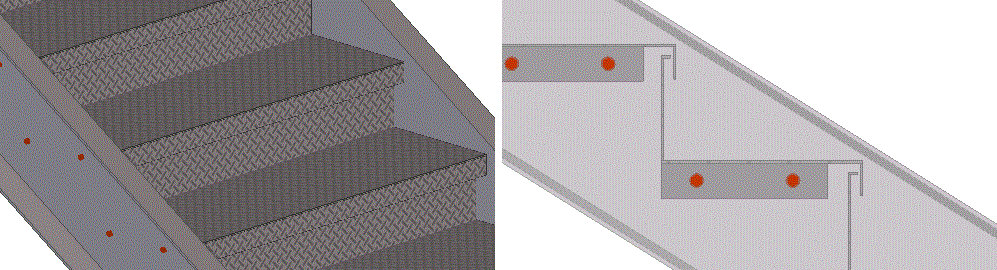

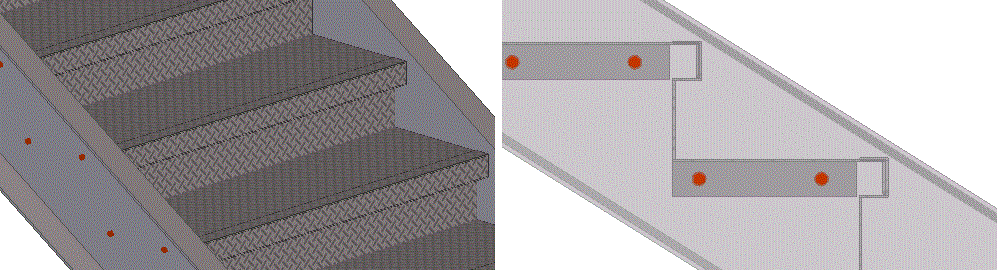

Tread type samples
Type 1
Type 2
Type 3
Type 4
Starting in v21.1, the above Custom Component is available in all US Environment Model Templates
- CIP-Rebar Detailing (hidden)
- Engineering (hidden)
- Precast Detailing (hidden)
- Steel Detailing*
