Dimensions Tab:
This tab allows the user to set the offset vertically from the selection point and the overall length of the pile. The user also has control over object position to offset from the selection point.
Attribute Tab:
This tab allows the user to set the name, profile, material, class, prefix, start number and pour phase of the pile.
Back to top
Purpose and description
Makes placing concrete piles quicker and easier. This tool creates the pile and has a very easy dialog box to set. The pile is based on the point that the user picks and not the global depth.Back to top
System requirements
Environments: US Imperial, US MetricLanguages: English
Back to top
Installing Foundation Pile
To install the application:- Close Tekla Structures (if running)
- Download MSI Installer from Tekla Warehouse
- Install and run MSI Installer
- Start Tekla Structures
- Open Model
- Before version 2016: A new toolbar icon which will launch the tool should now be visible. For 2016 version and newer: a new thumbnail under Ungrouped items in the Applications and components side pane will appear.
Using Foundation Pile

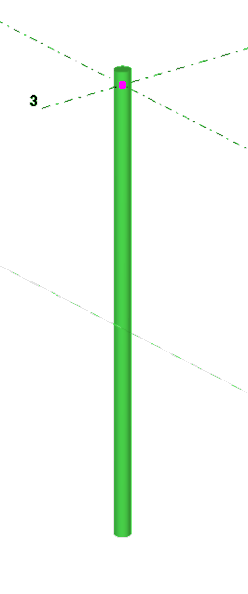

To use this tool, the user needs to select a point in the model where the pile needs to be created.Image
Dimensions Tab:
This tab allows the user to set the offset vertically from the selection point and the overall length of the pile. The user also has control over object position to offset from the selection point.
This tab allows the user to set the name, profile, material, class, prefix, start number and pour phase of the pile.
