WELD_SIZE1, WELD_SIZE2
This is a template attribute. Template attributes can be used in filtering, or to retrieve data from the model to use in drawings and reports. For example, when you create a report, Tekla Structures replaces the attributes added in the report template with the corresponding object property values.
Shows weld size for welds above and below line.

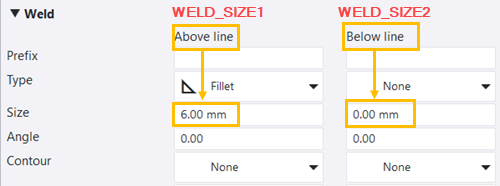

WELD_SIZE1 takes the size value from the Size box under Above line and WELD_SIZE2 takes the size value from the Size box under Below line.
