Stanchion side profile (86)

Stanchion side profile (86) creates a profile to connect the stanchion to the side of a stringer. A plate profile is welded to the stringer and the stanchion is bolted to the plate.

Objects created

Connection plate
Bearing plate
Bolts
Welds

Use for


Situation	Description
	Plate profile is welded to the stringer and the stanchion is bolted to the plate.

Selection order

Select the main part.
Select the secondary part.

The connection is created automatically when the secondary part is selected.

Part identification key


	Description
1	Bearing plate

Picture tab

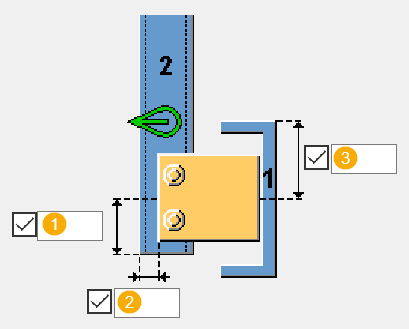

Use the Picture tab to control the connection dimensions.

Dimensions


	Description
1	Vertical distance between the secondary part bottom edge and bearing plate center line. By default, the distance is zero.
2	Horizontal distance between the secondary part edge and bearing plate edge. By default, the distance is zero.
3	Bearing plate vertical position. Define the distance from the main part upper edge to the bearing plate center line. By default, the distance is equal to the distance from the main part upper edge to the main part center line.

Parts tab

Use the Parts tab to define the part properties.

Parts


Option	Description	Default
Connection plate	Thickness and width of the connection plate.	By default, the connection plate is not created. Enter the thickness for the plate to create it.
Bearing plate	Thickness and height of the bearing plate.	By default, the thickness is `12 mm` and the height is determined by the bolt distances defined on the Bolts tab.

Parameters tab

Use the Parameters tab to define the connection plate orientation and chamfers.

Plate type


Option	Description
	Default Rectangular AutoDefaults can change this option.
	Retangular
	Diamond
	Triangular
	Circular
	Rectangular by bolts The plate size is determined by the values you enter on the Bolts tab.
	Circular by bolts The plate size is determined by the values you enter on the Bolts tab.

Plate orientation in skewed situations


Option	Description
	Default Perpendicular to the secondary part AutoDefaults can change this option.
	Perpendicular to the secondary part
	Oriented to the main part

Plate orientation


Option	Description
	Default Horizontal AutoDefaults can change this option.
	Perpendicular
	Horizontal

Chamfer type


Option	Description
	Default No chamfer AutoDefaults can change this option.
	No chamfer
	Line chamfer Define the horizontal and vertical chamfer dimensions.
	Round chamfer Define the chamfer radius.

Bolts tab

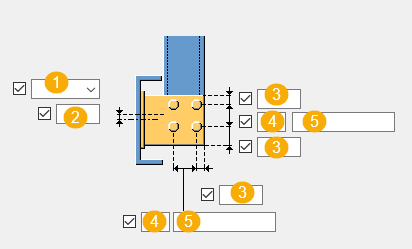

Use the Bolts tab to define the bolt group dimensions and bolt properties.

Bolt group dimensions


	Description
1	Select how to measure the dimensions for horizontal bolt group position. Left: From the left edge of the secondary part to the leftmost bolt. Middle: From the center line of the secondary part to the center line of the bolts. Right: From the right edge of the secondary part to the rightmost bolt.
2	Dimension for horizontal bolt group position.
3	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
4	Number of bolts.
5	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.

Bolt basic properties


Option	Description	Default
Bolt size	Bolt diameter.	Available sizes are defined in the bolt assembly catalog.
Bolt standard	Bolt standard to be used inside the component.	Available standards are defined in the bolt assembly catalog.
Tolerance	Gap between the bolt and the hole.
Thread in mat	Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used.	`Yes`
Site/Workshop	Location where the bolts should be attached.	`Site`

Slotted holes

You can define slotted, oversized, or tapped holes.


Option	Description	Default
1	Vertical dimension of slotted hole.	`0`, which results in a round hole.
2	Horizontal dimension of slotted hole, or allowance for oversized holes.	`0`, which results in a round hole.
Hole type	Slotted creates slotted holes. Oversized creates oversized holes. No hole does not create holes. Tapped creates tapped holes.
Rotate Slots	When the hole type is Slotted, this option rotates the slotted holes.
Slots in	Part(s) in which slotted holes are created. The options depend on the component in question.

Bolt assembly

The selected check boxes define which component objects (bolt, washers, and nuts) are used in the bolt assembly.

If you want to create a hole only, clear all the check boxes.

To modify the bolt assembly in an existing component, select the Effect in modify checkbox and click Modify.

Bolt length increase

Define how much the bolt length is increased. Use this option when, for example, painting requires the bolt length to be increased.

Staggering of bolts


Option	Description
	Default Not staggered AutoDefaults can change this option.
	Not staggered
	Staggered type 1
	Staggered type 2
	Staggered type 3
	Staggered type 4

Sbolts tab

Use the Sbolts tab to define the secondary part bolt group dimensions and bolt properties.

Bolt group dimensions


	Description
1	Dimension for vertical bolt group position.
2	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
3	Number of bolts.
4	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.
5	Dimension for horizontal bolt group position.

Bolt basic properties


Option	Description	Default
Bolt size	Bolt diameter.	Available sizes are defined in the bolt assembly catalog.
Bolt standard	Bolt standard to be used inside the component.	Available standards are defined in the bolt assembly catalog.
Tolerance	Gap between the bolt and the hole.
Thread in mat	Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used.	`Yes`
Site/Workshop	Location where the bolts should be attached.	`Site`

Staggering of bolts


Option	Description
	Default Not staggered AutoDefaults can change this option.
	Not staggered
	Staggered type 1
	Staggered type 2
	Staggered type 3
	Staggered type 4

General tab

Click the link below to find out more:

General tab

Design tab

Click the link below to find out more:

Design and Design type tabs

Analysis tab

Click the link below to find out more:

Analysis tab

Welds

Click the link below to find out more:

Create welds
