Border rebar for single edge (93): Previously, stirrups were sometimes created outside the part. This issue has now been fixed.

Border rebar for single edge (93): Stirrup and cover thickness dimensions are now created correctly for pin bar shapes that consist of two rebar groups. The functionality that swaps stirrups in the y axis for these shapes has also been fixed.

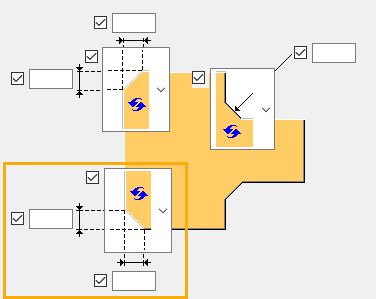

Joining plates (14): Previously, the finger shape of the fitting plates was not correctly created when some bolts were deleted. This issue has now been fixed.

Welded beam to beam (123): Previously, weld number 10 was created incorrectly in some cases. This issue has now been fixed.

Weld preparation (44): Previously, welds number 2 and 3 were created incorrectly. This issue has now been fixed.

Welded beam to beam (123): Previously, weld number 3 was created incorrectly in some cases. This issue has now been fixed.

Splice connection (77): Previously, some default values for welding were calculated incorrectly. This issue has now been fixed.

Two sided clip angle (143): Previously, when the clip angles were created on the far side and the secondary parts were C or U profiles, some bolts were created incorrectly. This issue has now been fixed.

Column seating (39): Previously, when there was a gap between the secondary parts, bolts were created incorrectly. This issue has now been fixed.

Bolted gusset (11): Previously, in some cases the gusset was welded to some other part than the main part. This issue has now been fixed.

Albion File transfer (95): The created CAM output files are now prefixed with the entered CAM name.

Railings (S77): Previously, when stanchions were cut by the rails through a slotted hole, the hole was created with incorrect rotation. This issue has now been fixed.

Tower diagonal (S66): Previously, the Z Levels option on the Parameters tab was not working correctly with imperial units. This issue has now been fixed.

Bent plate (190): Previously, the weld gap option on the Plates tab was not working correctly. This issue has now been fixed.

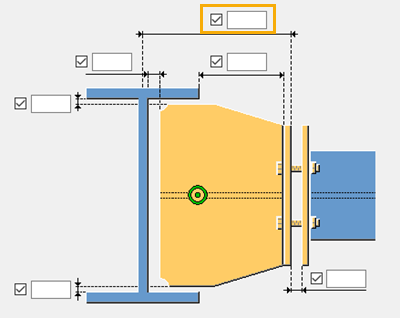

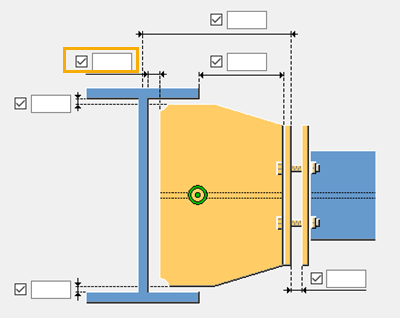

End plate (144): Previously, shim plates were created in incorrect positions in some cases. This issue has now been fixed.

Bolted gusset (11): Previously, flange cuts were created with an incorrect thickness. This issue has now been fixed.

Previously, Organizer data was not saved when you read in changes in a Tekla Model Sharing model. This issue has now been fixed.


Custom colors in imported DWG/DXF files: Now custom colors are imported correctly from DWG/DXF files. In Tekla Structures 2024, there was a strange block around the text or symbol text when you imported a newly exported drawing.

Reference models: Non-IFC reference models are now drawn correctly in 3D views after undo or redo.

IFC4 export: A sub-assembly that is created as IfcDiscreteAccessory or IfcMechanicalFastener is now exported completely.

IFC 2x3 export: Previously, all selected objects were sometimes not exported when there was surface treatment with an invalid parent relation. This issue has now been fixed.

Previously, in some rare cases, a deleted folder in Trimble Connect prevented the model upload. This has now been fixed.

Point clouds: The potree converter has been improved, and now the .tdx files are again converted properly to the potree format.

IFC export: A custom property that would return a null value for string, caused a Tekla Structures application error. This issue has now been fixed.

Import from Tekla Structural Designer: Previously, import was failing if a base plate was created under a missing column profile. This issue has now been fixed.

In Tekla Structures 2024, some drawings that were created with previous Tekla Structures versions could not be printed or exported in the DWG/DXF format. This issue has now been fixed.

Drawing export: Exporting drawings in the DWG format is slightly faster now.

Template Editor:  All AREA attributes in Template Editor now have two decimals by default.

In Tekla Structures 2024 Beta and Release Candidate, if you tried to create a pdf report and left the created PDF open in a PDF reader, Tekla Structures stopped responding due to an unhandled exception. This issue has now been fixed.

Template Editor: Using a CopyField() function to a value field that has a formula containing the ROW_IN_ALLPAGES attribute returns an incorrect value. This issue has now been fixed.
Now GetValue("ROW_IN_ALLPAGES") also returns the correct number of rows.

Drawing 2D Library: The detail scale is now correct when you insert a detail in an existing view or place the detail onto paper without creating a new view.

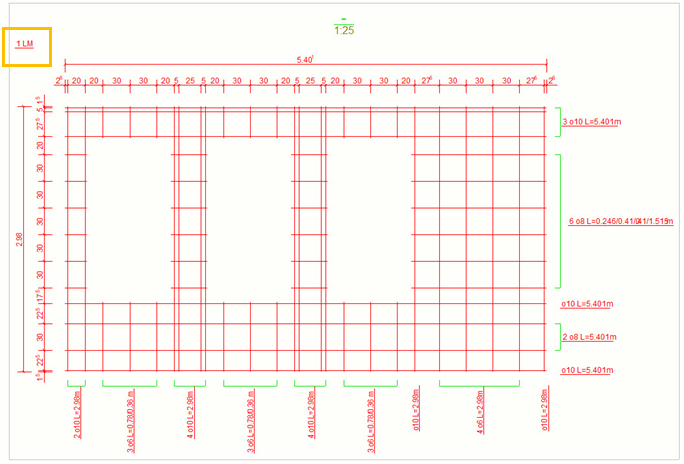

Rebar mesh view creator: You can now create mesh views from any view type, not only from front and back views. You can also create mesh views from views in general arrangement drawings.

Drawing view labels: Previously, the text position of drawing view labels sometimes changed when you modified the section view name. This was due to conflicting Text position properties between the Section mark with view and Drawing view objects. Now, if you modify the Drawing view object after the section mark creation, changes made to the Section mark with view object no longer override the properties of the drawing view.

Dimensions: Text type dimension tags in the middle lower tag now remain in the correct position when drawing view scale is adjusted.

Single marks in merged rebar marks in drawings: You were able to change the text color for a single mark in merged rebar marks in the property pane even though the color change was not applied on the mark. This issue has now been fixed and the color setting for the single mark text in merged rebar marks is disabled in the property pane.

Print drawings: The print preview performance has been improved. Now the preview just updates without displaying any messages. Only when multiple rows have been changed, or several changes happen very quickly, the waiting message is displayed.

Drawing weld marks: Drawing weld marks showed first decimal places when the welding angle was exactly 15, 30, 60, or 120 degrees. For example, 15.0 was shown instead of 15. This issue has now been fixed and decimals are shown only when needed.

In the drawing property pane, imperial units are now working for the Font height property of the drawing link, hyperlink and rich text objects.

Dimensioning: Some angle dimensions may have been unnecessarily removed in drawing cloning. This issue has now been fixed.

Printing: If Black and white was selected as the printing Color option, gray colors with a percentage, like Gray 70%, were shown as black in line property previews. The issue was only cosmetic, and the actual output used a correct grayscale color. This has now been fixed and the line properties show the correct color.

Symbol previews now work more reliably in the drawing property pane when black background is used (XS_BLACK_DRAWING_BACKGROUND=TRUE).

Drawing property pane: The usability of modifying objects of different types in the drawing property pane has been improved.

Merging marks: Merging marks manually in drawings no longer removes content that does not have a value at the time of merging.

Weld marks: Earlier, when you deleted a weld from the model and opened a drawing that contained an automatic model weld mark for the deleted weld, the automatic model weld mark changed into a drawing weld mark. This issue has now been fixed.

Tekla Structures no longer stops responding when you try to modify the view-level reinforcement mark properties by loading a property file that contains an inner frame with type=0.

Tekla Model Sharing: Previously, autosave could cause the model database/autosaved database to end up in an incorrect state. Now, autosave is stopped during model sharing operations, such as write out.

Rebar assemblies: The properties of the main rebar object in a rebar assembly can now be output in templates using the MAINPART. prefix in front of the property name. For example, you can use MAINPART.LENGTH. Note that these properties already work in Tekla Structures 2022 and newer versions if you type the property name in the template.

Rebar sets: Tekla Structures no longer warns you about a duplicate object when you create a rebar set modifier in the same location as an existing modifier but for a different rebar set. If two modifiers of the same type are created in the same location for the same rebar set, they are still considered duplicates as before.

Rebar sets: Sometimes it was difficult to select leg surfaces when you were creating or modifying rebar sets in complex concrete structures. These issues have now been fixed.

In Tekla Structures 2023, curved rebar groups started being treated as polygonal geometry, just like any other type of rebar, in rebar shape recognition. This was done to allow rebar shape recognition to generate rationalized and fabrication geometry for them (for example, where curves are recognized as straight). This resulted in slight inaccuracies in the inner or outer arc radii reported by rebar shape recognition, and other arc dimensions. This issue has now been fixed.

Rebar sets: A potential problem with handling of relations between rebar sets during model opening, which could cause incorrect layering, has now been fixed.

Rebar sets: An issue has been fixed in rebar set layering whereby the layer offsets were incorrect when rebar sets on outer layers had differing sizes.

Rebar sets: An issue has been fixed with the calculation of bars in a rebar set containing three guidelines which may result in incorrect length or invalid bars.

Now the fields in the user-defined attributes dialog boxes can contain up to 255 characters, which is the same number of characters as in the property pane.

Previously, the fields in the user-defined attributes dialog boxes could contain only 79 characters.


Previously, there was an issue with lofted plates when the center line segments were almost flat but had a very small angle difference. This has now been fixed.

Welds: When you use the Prepare part for welding with polygon command, the property pane now accepts ANTIMATERIAL as valid material for the polygonal shape.

BCF Topics: Now, a BCF topics view created in Trimble Connect and loaded in Tekla Structures also loads the selected or hidden status of the native Tekla Structures objects from the model.

BCF Topics: Now the views that are created in Tekla Structures save the objects' selected or the hidden status, set by using the object representation settings.

When a Tekla Structures model is uploaded to a Trimble Connect project as a .tekla file and the view is loaded in Trimble Connect or in Tekla Structures, the selected objects are highlighted and the hidden objects remain hidden.

Previously, bolt holes that went through several even surfaces of a part were created through the entire part and were shown in the same way as bolt shanks in model views and drawings. This happened for parts with a circular hollow section or a profile with beveled flanges. This issue has now been fixed.

When multiple objects of different types are selected, the property pane is now slightly faster.

An application error related to pours has been fixed.

The view rotation symbol for the local coordinate system now rotates the model along the shortest path.

Assembly ID has been removed from the columns that are available in the Clash check manager dialog box. The Assembly ID column is not available due to performance reasons, as fetching assembly information makes displaying clash check results slow. Assembly ID is shown in the detailed clash check results.

BCF Topics: Measurements now take into consideration the settings in the XS_MAX_FRACTIONS_IN_MODEL advanced option for the ft-inch measurements.

BCF Topics: Previously, when pour objects were hidden, and a BCF topic view was created and the view was loaded in Tekla Structures, the pour objects were not hidden. This has now been fixed, and the pour objects remain hidden.

Previously, if the contextual toolbar was pinned to a fixed position and you started a direct modification command which had its own toolbar, the position of the contextual toolbar might have changed after the direct modification command was finished or interrupted.

Now, in DirectX rendered model views with the object rendering set to Parts wireframe, the objects remain visible longer when you zoom out.

Previously, there was a noticeable delay when changing the modeling command after working offline for a few hours. This issue has now been fixed.

The notification that is shown when the connection to the licensing server is lost no longer takes focus from the user's mouse. The user can continue working in the main Tekla Structures window without having to change focus to make the window active again.

Bridge creator: You can now define the phase for the objects that Bridge creator creates.
The Phase box has been added to the General tab and to the Components tab in the Bridge creator dialog box.

Previously, identical parts received different position numbers if the parts had both regular bolt holes and tapped holes with the same diameter. This issue has now been fixed.

Property pane: Copying properties to the clipboard now causes less visual blinking than previously.

DSTV to DXF converter: A new option, Draw outer diameter of countersunk holes, has been added on the Environment tab. If you select Yes, the outer diameter of the countersunk holes will be created in addition to the inner diameter. If you select No, only the inner diameter will be created. No is the default value.

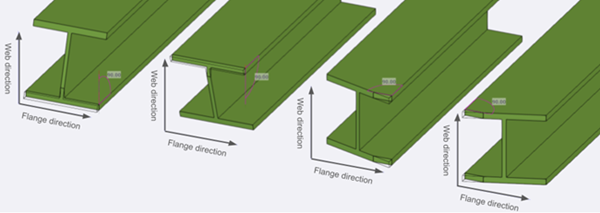

DSTV/NC: Earlier, in certain cases where the profile flange was cut and the distance from the flange within which the web is not cut was set, the resulting geometry was incorrect. This issue has now been fixed.

DSTV/NC: Earlier, when you used model or object attributes in the part position number and had XS_USE_ASSEMBLY_NUMBER_FOR set to an empty value, the number of parts in NC files was incorrect. This issue has now been fixed.

DSTV/NC: Earlier, when you exported a bent plate with pop-marks to DSTV, bending lines were exported incorrectly. This issue has now been fixed.
