Tekla PowerFab 2025 SP3

El paquete de servicio más reciente para Tekla PowerFab 2025 se puede descargar de

Improvements in Integration Settings

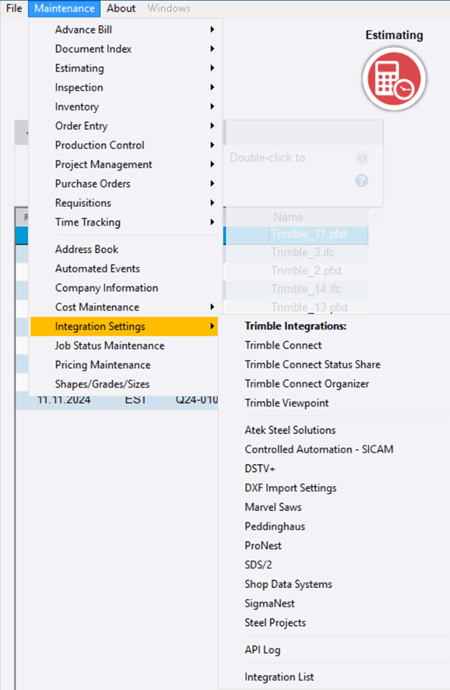

All Trimble software integrations have been grouped under a new Trimble Integrations in Maintenance > Integration Settings.

EPM-9669

Update linked instances after import

A new checkbox in Advance Bill and Production Control Company Standards allows you to control whether links are updated when a part's length has changed between imports.

Show Option to Update Links on the ABM Settings tab in Maintenance > Advance Bill > Company Standards

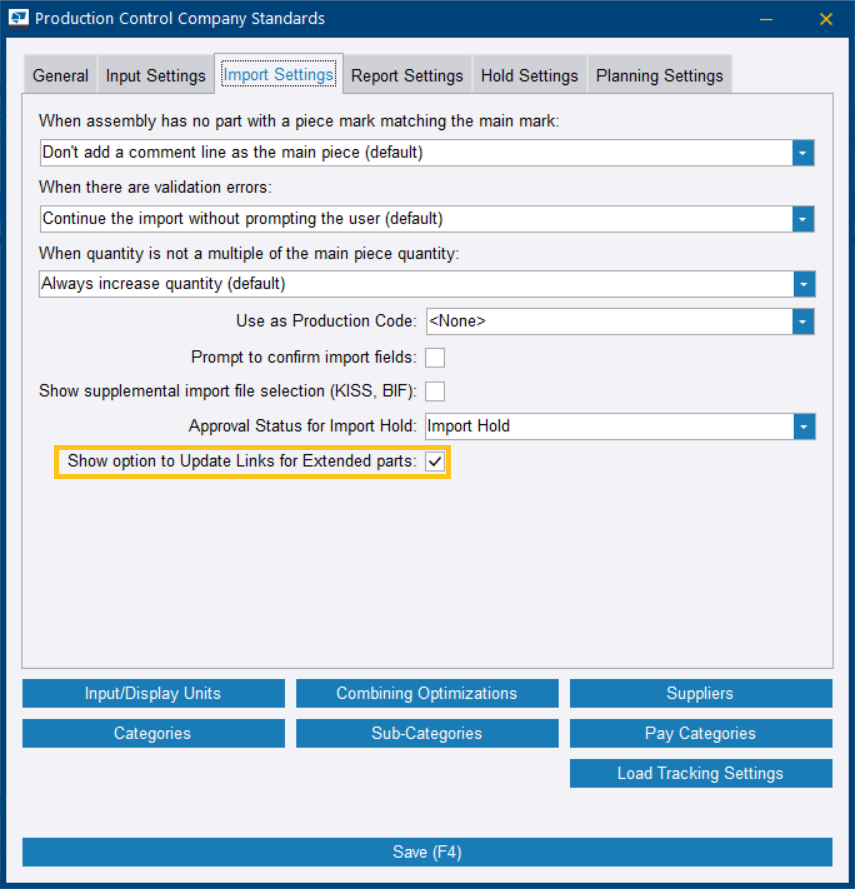

Show option to Update Links for Extended parts on the Import Settings tab in Maintenance > Production Control > Company Standards.

The checkbox is selected by default. When selected, the Change Summary dialog displays the Update Links checkbox.

See the following:

ABM settings in Define company standard settings for Advance Bill
Manage changes to an Advance Bill job
Import settings in Define company standard settings for Production Control
Manage changes to a production control job

EPM-9702, EPM-9703

Planning information in Work Packages

A new tab, Plan, has been added to the Work Package dialog to display planning details per department.

See View work package planning details.

EPM-9471

Open a Trimble Connect project from dialog

For easy access to a Trimble Connect project, there is a new Open button in the Job Edit dialogs in the Advance Bill, Estimating, Project Management, and Production Control modules.

See the following:

EPM-9847

Interactive help for Tekla products in Trimble Assistant for Tekla (Preview)

Trimble Assistant for Tekla is an artificial intelligence (AI) chat service that provides support for Tekla products.

You can use Trimble Assistant for Tekla in a web browser.

The User Assistant provides support for Tekla products based on content in Tekla User Assistance.

You need a Trimble Identity to sign in to Trimble Assistant for Tekla. If you do not yet have a Trimble Identity, you must create one before you can use the service.

In Tekla PowerFab 2025, Trimble Assistant for Tekla is a preview feature.

You can submit feedback by mail to powerfab-preview-feedback-ug@trimble.com.

Correcciones

Número de defecto	Área de desarrollo	Descripción
EPM-2377	Estimating	Two new reports have been added to Estimating: Estimate by Page & Line - with Welds and Weld Summary. They include weld detail summary information.
EPM-9802	Estimating	Previously, when importing a Bluebeam file into Estimating, the LengthUOM field might have been read incorrectly. This issue has now been fixed..
EPM-9824	Production control	Previously, in Workshop Maintenance, an error could occur when attempting to delete a work area that had had department shifts created for it. This issue has now been fixed
EPM-9841	Production control	Previously, in rare cases, a TFS Cut command sent through the PowerFab API could perform a TFS Cut on a Cut List Item other than what was specified (though it was identical to the one specified). This issue has now been fixed.
EPM-9238	Purchasing	Previously, exporting a purchase order to Quick Books did not include subcontract items. This issue has now been fixed.
EPM-9851	Inventory	Previously, when a TFS was processed and a waste record created, due to kerf or a drop lower than expected, the resulting record added to inventory history did not have the WASTE value in the job # field. This issue has now been fixed.
EPM-9791	Integrations	Previously, in rare cases when processing the TFS on a plate nested by external software, a greater quantity of parts could be marked as having been cut. This issue has now been fixed.
EPM-9756	Shapes/grades/sizes	Previously, in Shapes/Grades/Sizes Maintenance, a global edit on the Revaluation > Calc field had no effect. This issue has now been fixed.
