Engineering library update (November 2025)
Tekla Tedds Engineering Library update (November 2025 - version 27.07) is available in Trimble Downloads.
All Regions
2D analysis, Beam analysis

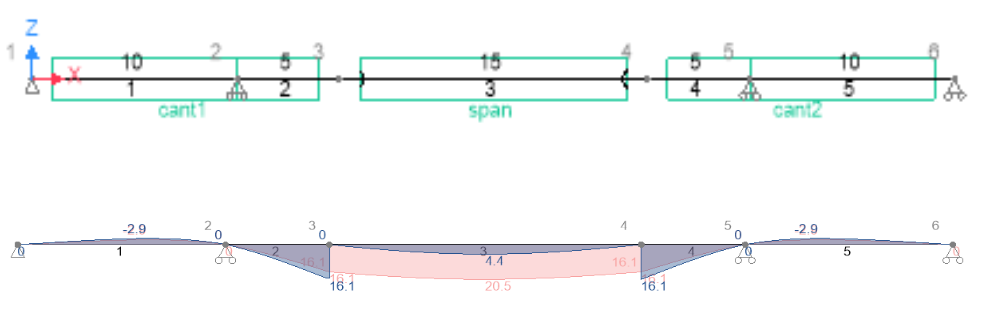

Enhanced to bring greater accessibility to member local deflections. It is now easy to view local member deflections in sketches and tables and include results in the output. Member deflection design can now be carried out for either global or local deflections depending on selection, where applicable. See regional information for calculations with design enhancements.
The Design Member Configuration dialog is improved to provide more guidance and provide better default support definitions for common conditions.
American Design
Steel 2D analysis & design (AISC360), Wood 2D analysis & design (NDS)
Enhanced to bring greater accessibility to member local deflections. It is now easy to view local member deflections in sketches and tables and include results in the output. Member deflection design can now be carried out for either global or local deflections depending on selection.
Other updates
|
Steel 2D analysis & design (AISC360) Steel member analysis & design (AISC360) Wood 2D analysis & design (NDS) Wood member analysis & design (NDS) |
|
|---|---|
| TEDDS-3498 | Enhanced so existing calculations are fully updated when calculated using a newer version. |
| Retaining wall analysis & design (ACI318/MSJC) | |
|---|---|
| TEDDS-9798 | Corrected undefined variable error, Ms1_max, associated with the design of stepped retaining walls. |
| TEDDS-9784 | Corrected the application of user defined seismic loads in the analysis model. |
Australian Design
RC 2D analysis & design (AS3600), Steel 2D analysis & design (AS4100)
Enhanced to bring greater accessibility to member local deflections. It is now easy to view local member deflections in sketches and tables and include results in the output. Member deflection design can now be carried out for either global or local deflections depending on selection.
British Design
No updates.
Canadian Design
Product bulletin November 2025 (PBT-2511-1)
Steel section design (CSA-S16) - Corrected calculation of torsional buckling stress and slenderness used in overall member strength check, this issue is potentially unconservative, for more detailed information please refer to Product bulletin November 2025 (PBT-2511-1).
Other updates
| Steel column design (CSA-S16) | |
|---|---|
| TEDDS-9744 | Corrected combined check for axial compression and bending. |
| Steel section design (CSA-S16) | |
|---|---|
| TEDDS-1708 | Amended selection of yield strengths shown in UI. |
| TEDDS-9741 | Corrected calculation of moment magnification factor, U1y_c, to allow values less than 1. |
| TEDDS-9744 | Corrected combined check for axial compression and bending. |
| TEDDS-9745 | Corrected combined check for axial compression and bending in HSS sections. |
Eurocode Design
Steel 2D analysis & design (EN1993), Timber 2D analysis & design (EN1995)
Enhanced to bring greater accessibility to member local deflections. It is now easy to view local member deflections in sketches and tables and include results in the output. Member deflection design can now be carried out for either global or local deflections depending on selection.
Other updates
|
Steel 2D analysis & design (EN1993) Steel member analysis & design (EN1993) |
|
|---|---|
| TEDDS-3498 | Enhanced so existing calculations are fully updated when calculated using a newer version. |
|
Timber 2D analysis & design (EN1995) Timber member analysis & design (EN1995) |
|
|---|---|
| TEDDS-3494 | Resolved undefined variable '_FsCrit' error. |
| TEDDS-3498 | Enhanced so existing calculations are fully updated when calculated using a newer version. |
