XS_DRAW_REBAR_SELF_INTERSECTING_LEGS_WITH_OFFSET
Category in Advanced options dialog: Drawing properties
When set to TRUE, this advanced
option displays rebars in drawings with overlap in all representations.
Note that FALSE has no impact on the
filled line representation. The default value is
FALSE.
This advanced option is model specific and the setting is saved in the options database. Reopen the model to activate the new value.

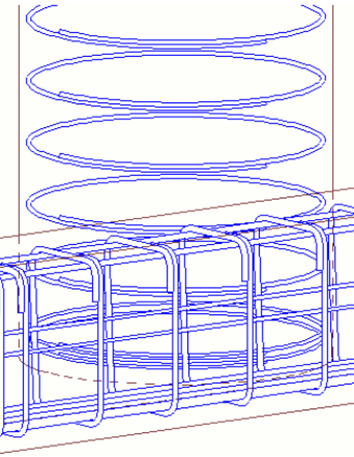

XS_DRAW_REBAR_SELF_INTERSECTING_LEGS_WITH_OFFSET set to TRUE:
XS_DRAW_REBAR_SELF_INTERSECTING_LEGS_WITH_OFFSET set to FALSE:
