XS_DRAW_REBAR_HIDDEN_FACES
Category in Advanced options dialog: Drawing properties
Use this advanced option to control the display of the rebar hidden faces in drawings. To show the hidden faces of the rebars, set this advanced option to
TRUE.
FALSE is the default value.
This advanced option is model specific and the setting is saved in the options database.

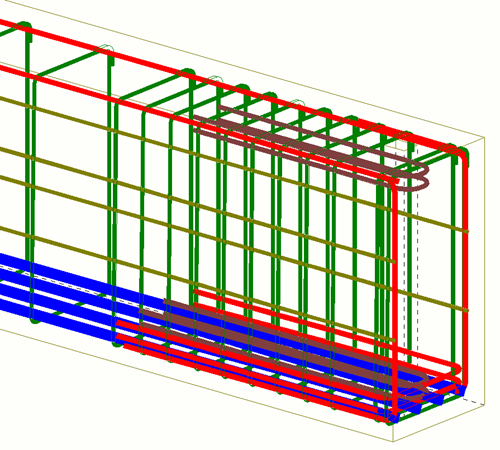

In the first image below,
XS_DRAW_REBAR_HIDDEN_FACES has been set to
TRUE.
In the image below,
XS_DRAW_REBAR_HIDDEN_FACES has been set to
FALSE.
This advanced option is model specific and the setting is saved in the options database. Reopen the model to activate the new value.
