XS_DISABLE_VIEW_CENTERING_ASSEMBLY
Category in Advanced options dialog: Drawing views
Use this advanced option to left-align and/or top-align assembly drawing views at drawing creation. Enter any of the following values:
HOR = align views horizontally (to left)
VER = align views vertically (to top)
TRUE = align views horizontally and vertically (to top left)
HOR VER = align views horizontally and vertically (to top left, enter both values separated by a space)
FALSE = create centered views
empty = create centered views
This advanced option is model specific and the setting is saved in the options database. Reopen the model to activate the new value.
Examples
No values are used, views are centered:

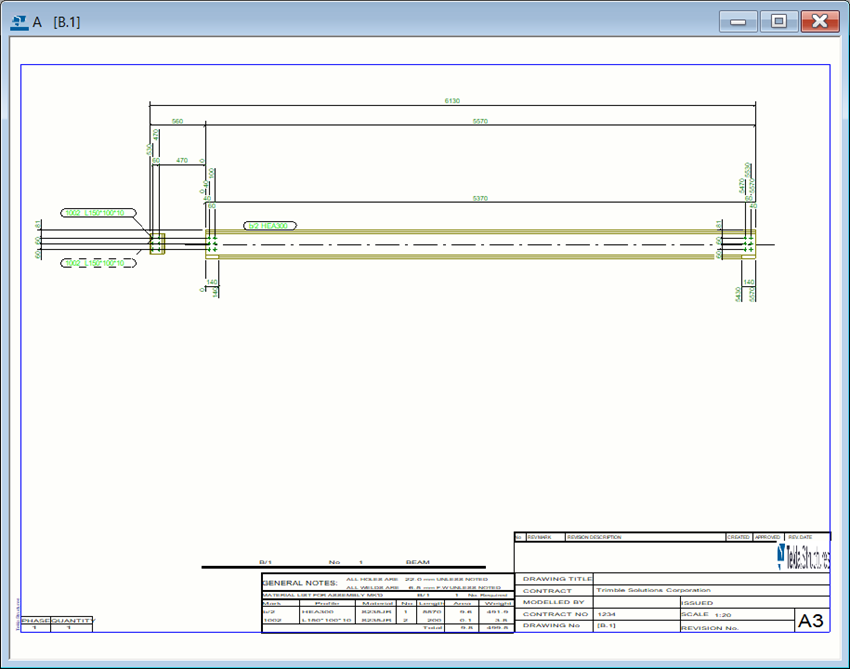

Value HOR VER used, views aligned to top and left:
