XS_TUBE_UNWRAP_WITH_CUT_HOLES
Category in Advanced options dialog: Drawing properties

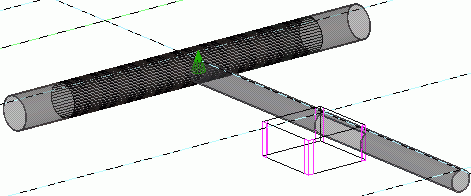

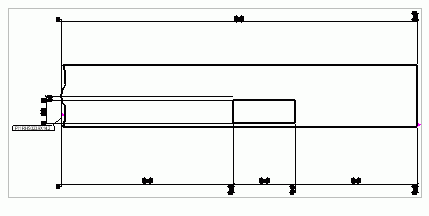

Set this advanced option to TRUE to include cut holes in
workshop drawings or NC files of unwrapped CHS (circular hollow section) profiles.
This advanced option is set to
TRUE by default. If you set it to
FALSE, then the previously existing unwrapping method is applied.
|
|
|
|
This advanced option is model specific and the setting is saved in the options database.
Note:
-
If you set this advanced option to
TRUE, the advanced optionsXS_TUBE_UNWRAP_LIMIT_THICKNESSandXS_TUBE_UNWRAP_PAPER_THICKNESShave no effect. -
Using this advanced option does not affect conical tube profiles.
