XS_SHOW_NOTIFICATION_REPORT
Category in Advanced options dialog: Modeling properties
Set this advanced option to
TRUE to run and
display a notification report from the whole model when you open a model.
You can use the notification report to:
- list assignments on all objects (drawings, parts, and assemblies).
- report the following, for example:
- how many assemblies there are in the model
- how many assembly drawings have been created
- how many of the assembly drawings have been approved
- how many of the assembly drawings have been issued for production
The report template used is called
notification_report, and you can edit it in Template Editor.
The notification report reports anything you want, not just assignments. You need to
customize the report template to report the things you want. For example, some
environments do not have all attributes available, like ASSIGNED_TO or ASSIGNED_BY,
for parts and assemblies.
The report template is located under the ..\ProgramData\Trimble\Tekla Structures\<version>\environments\<environment>\ folder. The exact location may vary depending on the folder structure of your environment files. The report is saved under the current model folder.
If you do not want to display the notification
report upon opening a model, set this advanced option to FALSE, which is the default
value.
This advanced option is model specific and the setting is saved in the options database.

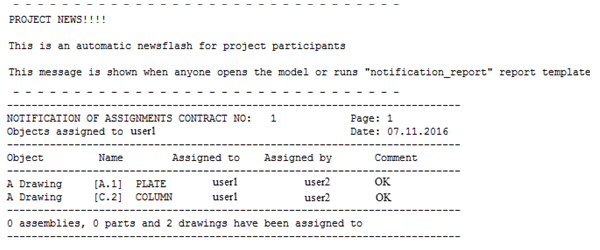

Example of the notification report containing list of drawing assignments:
