XS_SET_HATCH_ORIGIN_INTO_VIEW_ORIGIN
Category in Advanced options dialog: Hatching
To draw hatches consistently between parts and
set to origin, set the advanced option XS_SET_HATCH_ORIGIN_INTO_VIEW_ORIGIN to TRUE and the scaling and
rotation of hatches to zero (0). The default value is FALSE.
For
automatic hatches, the scale and rotation are set in the
.htc file, for example,
CONCRETE,0,hardware_LINES,,120, where the value 0 (or empty) sets auto scale and rotation to false.
For manual hatches, the scale and rotation are set in the part or shape properties, where you need to set the Scale option to Custom and select the Keep ratio of x and y checkbox.

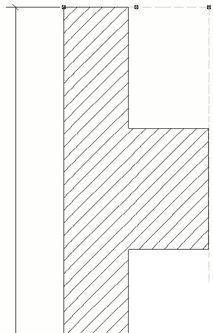

In the example below, the parts that belong to the same cast unit are hatched consistently.
This advanced option is model specific and the setting is saved in the options database.
