XS_DSTV_USE_ONE_VERTEX_SHARP_INNER_CORNER
Category in Advanced options dialog: CNC
Set this advanced option to
TRUE if you do not
need additional vertex points in the AK block of your DSTV file, for example, when
you do not define the rounding radius in the NC settings. By default, this advanced option is set to FALSE, which means that
additional vertex points are added.
This advanced option is model specific and the setting is saved in the options database.
Example

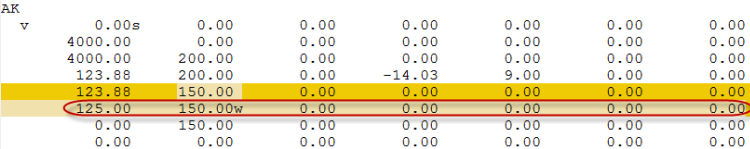

Results in the
DSTV file when the advanced option is set to TRUE:
Results in the
DSTV file when the advanced option is set to FALSE.
