XS_DSTV_NO_SAWING_ANGLES_FOR_PLATES_NEEDED
Category in Advanced options dialog: CNC
Use this
advanced option to define whether to specify skew angles in the NC file header for plates. TRUE does not write the skew
angles in the file header. If you want to specify skew angles, set this advanced
option to FALSE. The default value is TRUE.
This advanced option is model specific and the setting is saved in the options database.

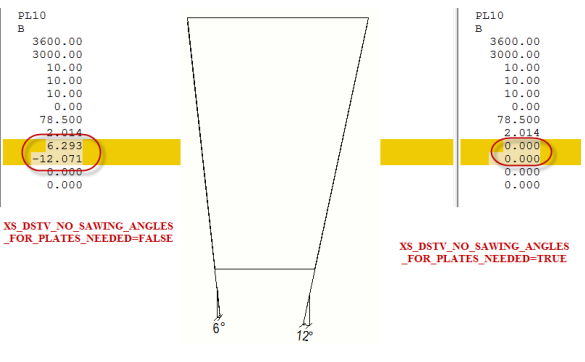

See below for an example:
