XS_DISABLE_VIEW_CENTERING_ASSEMBLY
Category in Advanced options dialog: Drawing views
Use this advanced option to left-align and/or top-align assembly drawing views at drawing creation. Enter any of the following values:
HOR = align views horizontally (to left)
VER = align views vertically (to top)
TRUE = align views horizontally and vertically (to top left)
HOR VER = align views horizontally and vertically (to top left, enter both values separated by a space)
FALSE = create centered views
empty = create centered views
This advanced option is model specific and the setting is saved in the options database.
Examples

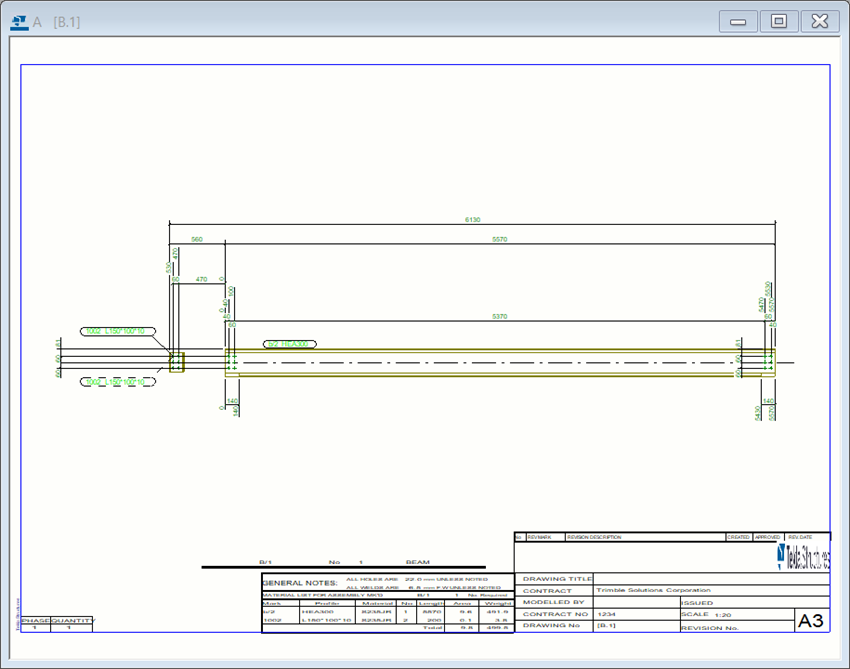

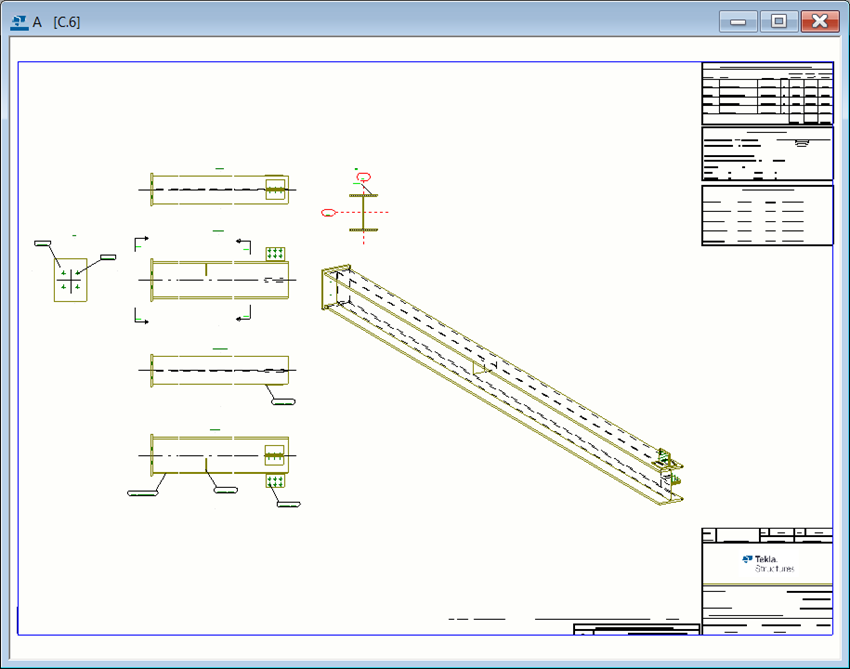

No values are used, views are centered:

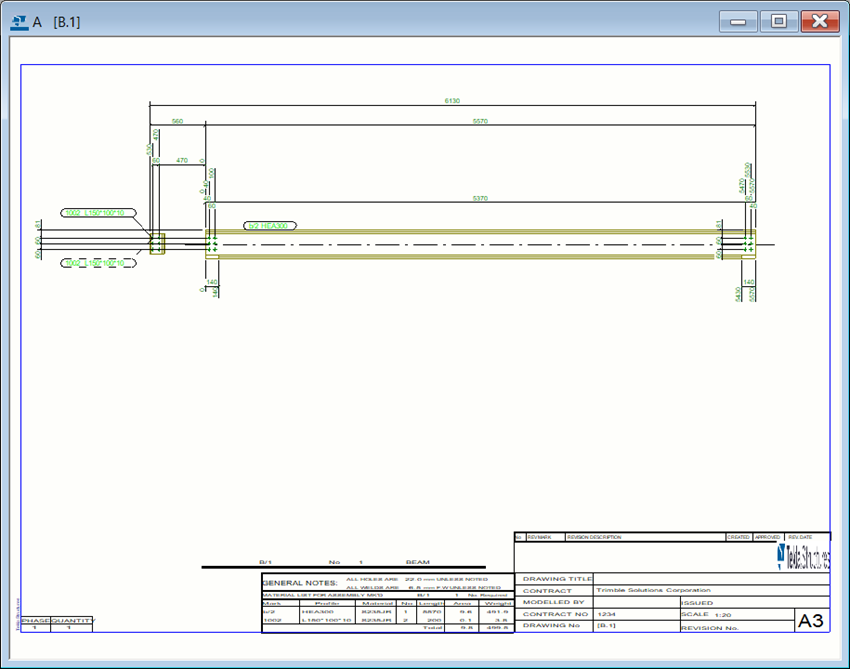

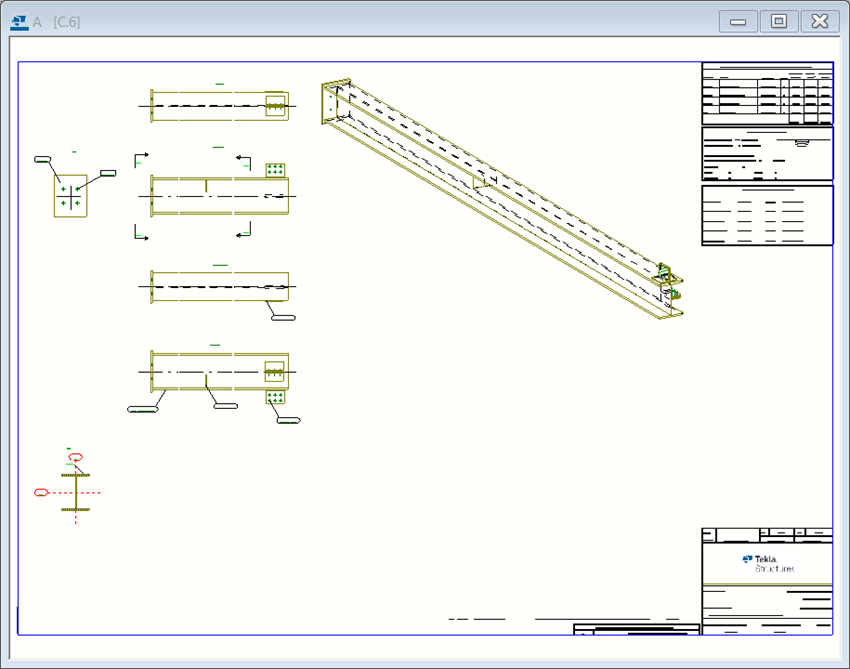

Value HOR VER used, views aligned to top and left:
