XS_BOLT_REPRESENTATION_SYMBOL_AXIS_POSITION_AS_EXACT_SOLID
Category in Advanced options dialog: Drawing properties
If you set the advanced option
XS_BOLT_REPRESENTATION_SYMBOL_AXIS_POSITION_AS_EXACT_SOLID to
TRUE, all bolt axis representations set to
Symbol are presented in the same position as with
Exact solid.
The default value is TRUE.
This advanced option is model specific and the setting is saved in the options database. Reopen the model to activate the new value.

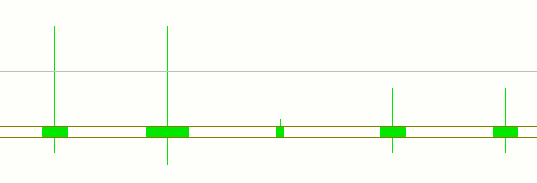

Symbol representation when the advanced option is set to
FALSE:

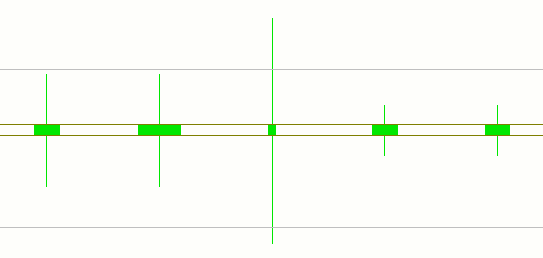

Symbol representation when the advanced option is set to
TRUE:
