Labels created with Template Editor
In addition to textual data, graphical templates may also contain graphics. This example template outputs a simple map legend. A label can be a template that contains only a header component.

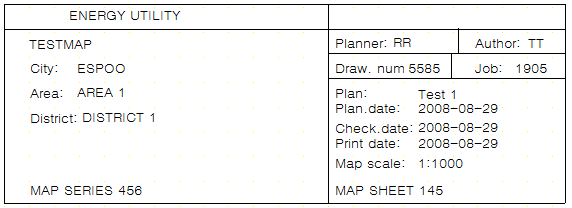

The output template is a map legend that can be inserted on a background map. The legend, for example, contains the district name, scale and important dates.

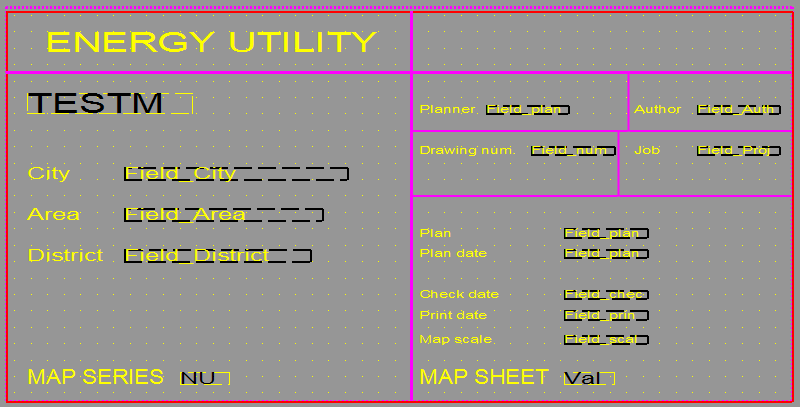

The legend is based on the following template:
It is a header component that contains the following objects:
Object | Description |
|---|---|
Text objects | Title texts "Energy Utility", "City", "Area" and "District" |
Line objects | Table outlines |
Value fields | Data from the product: name of the city and area, etc. References to the product data are made by using global attributes in value fields. |
