Adding comments to row rules and value field formulas in Template Editor

You can add comments to row rules and value field formulas in order to add information that may be useful or helpful to you.

To add comments to rules and formulas:

  1. Select the value field or row and double-click to open the Value Field Properties or the Row Properties dialog.
  2. Click the Formula button to open the Formula Contents dialog or the Advanced button to open the Rule Contents dialog.

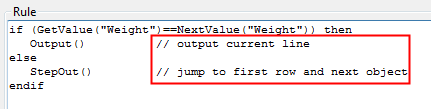

  3. Modify the contents of the formula or rule and add the comments at the end of each line with the following syntax: // <comment>

    You can also insert comments in-line with the following syntax: /* <comment> */
