Merge new marks to existing merged marks
Merging part, bolt, reinforcement, or weld marks in drawings is a widely used feature. There is now more flexibility in merging new marks into existing merged marks, and you no longer need to split the existing merged marks first to be able to merge a new mark.
When you select existing merged marks, the Merge command is now available in the context menu allowing you to merge new marks to the merged marks, keeping the original position of the merged marks.

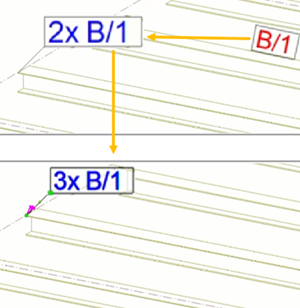

- To merge a new mark into existing merged marks, select the new mark, then
right-click the merged marks and select Merge.
If marks are merged so that you select one set of merged marks, all the selected single marks are merged into that set of merged marks. If you select multiple sets of merged marks, all the selected single marks are merged into the set of merged marks that you selected last.
