You can select whether to show edge chamfers in your drawing, and the way they are shown.

1. Open a drawing with a view of a part containing edge chamfers, and double-click the view frame to open the drawing view properties.
2. In the options tree on the left, select Part.
3. In the Additional marks area in part properties, select the Edge chamfers on/off checkbox.
4. In the Representation list, depending on the desired result, select Outline or Exact.

   Exact

   Outline

5. Click Modify.
6. If needed, double-click the edge chamfer in the drawing and modify the line color and type in edge chamfer properties.
   You can use a standard color or a custom RGB color.

To show the edge chamfers for a particular part in a drawing, double-click the part in the drawing, and in part properties, click the Edge chamfers eye button , and click Modify.

You can define a default color and line type for edge chamfers in drawings.

1. On the File menu, click Settings > Options and go to the Drawing objects settings.
2. Define the default line color and default line type for the edge chamfer.
   You can use a standard color or a custom RGB color.
3. To save the default settings and close the dialog, click OK.

You can change the line type and color of the edge chamfers manually in an open drawing. This overrides the default color and type defined in the Drawing objects settings in the Options dialog.

1. To modify the edge chamfer properties, double-click an edge chamfer in an open drawing.
2. Select the desired color and line type.
   You can use a standard color or a custom RGB color.
3. Click Modify.

   The line color and type changes.

   Invisible color is often used for edge chamfer lines for the reason that you may not want to print edge chamfers, or see them in small scale drawings, but you still want to be able see and select them, for example, to add associative notes.

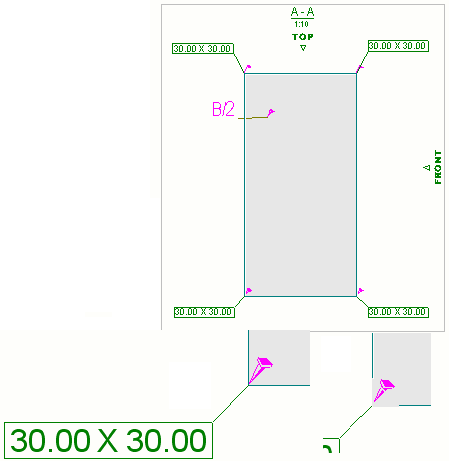

You can add associative notes to edge chamfers.

1. Open a drawing of a part that has edge chamfers.
2. Double-click the parts and edge chamfers and modify the part properties and edge chamfer properties so that edge chamfers are visible and you can easily select them.
3. To open associative notes properties, hold down Shift and on the Annotations tab in the drawing, click one of the commands in the Note drop down.
   You can also select Associative note in the property pane object list.
4. In the Object type list, select Edge chamfer.
5. In the associative note visual editor, click the plus button to open the element list and select the elements to be added in the note.
   You can delete the unnecessary elements from the note by clicking the red delete button
6. Modify other properties as required.
7. To add the note, click an edge chamfer in the drawing.

   If you use a leader line, you need to pick a position for the note.
