Stub (1011)

Stub (1011) creates a stub to a position you pick on a beam.

Objects created


Situation	Description
	Stub profile created on a beam.

Select a beam.
Pick a position on the beam.

The stub profile is created automatically when you pick the position.


	Description
1	Stub profile

Use the Picture tab to control the geometry of the detail.


	Description

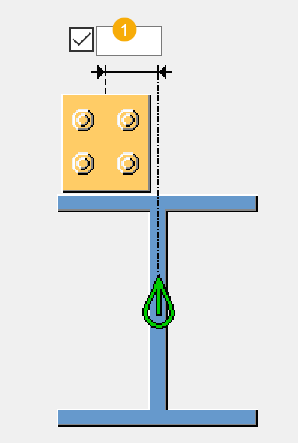

1	Distance from the stub center line to the beam center line. By default, the distance is zero.

Use the Parts tab to define the part properties.


Option	Description	Default
Profile	Select the stub profile from the profile catalog.	`U140`


Option	Description	Default
Pos_No	Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number.	The default part start number is defined in the Components settings in File menu > Settings > Options.
Material	Material grade.	The default material is defined in the Part material box in the Components settings in File menu > Settings > Options.
Name	Name that is shown in drawings and reports.

Use the Parameters tab to define the stub rotation.

Select how the profile is rotated: back, front, top, or below.


Option	Description
	Default Back The empty option is for backward compatibility. AutoDefaults can change this option.
	Back
	Front
	Top
	Below

Use the Bolts tab to define the bolt group dimensions and bolt properties.


	Description

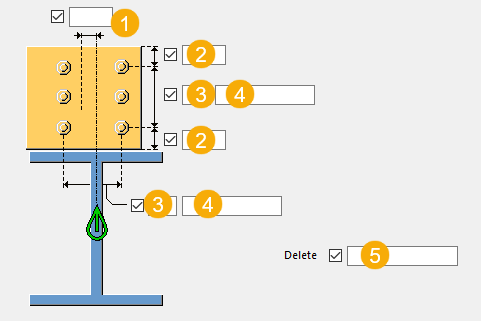

1	Dimension for horizontal bolt group position.
2	Bolt edge distance. Edge distance is the distance from the center of a bolt to the edge of the part.
3	Number of bolts.
4	Bolt spacing. Use a space to separate bolt spacing values. Enter a value for each space between bolts. For example, if there are 3 bolts, enter 2 values.
6	Define which bolts are deleted from the bolt group. Enter the bolt numbers of the bolts to be deleted and separate the numbers with a space. Bolt numbers run from left to right and from top to bottom.


Option	Description	Default
Bolt size	Bolt diameter.	Available sizes are defined in the bolt assembly catalog.
Bolt standard	Bolt standard to be used inside the component.	Available standards are defined in the bolt assembly catalog.
Tolerance	Gap between the bolt and the hole.
Thread in mat	Defines whether the thread may be within the bolted parts when bolts are used with a shaft. This has no effect when full-threaded bolts are used.	`Yes`
Site/Workshop	Location where the bolts should be attached.	`Site`

You can define slotted, oversized, or tapped holes.


Option	Description	Default
1	Vertical dimension of slotted hole.	`0`, which results in a round hole.
2	Horizontal dimension of slotted hole, or allowance for oversized holes.	`0`, which results in a round hole.
Hole type	Slotted creates slotted holes. Oversized creates oversized holes. No hole does not create holes. Tapped creates tapped holes.
Rotate Slots	When the hole type is Slotted, this option rotates the slotted holes.
Slots in	Part(s) in which slotted holes are created. The options depend on the component in question.
