Stiffened notch (1006)
Stiffened notch (1006) creates a notch and a stiffener plate from the position you pick on a beam to the beam end.
Objects created
-
Stiffener
-
Welds
Use for
| Situation | Description |
|---|---|
|
|
Notch created to a beam. |
|
|
Stiffened notch. Notch cut bevel to the part. |
Selection order
-
Select a beam.
You can select multiple beams using area selection.
-
Pick a position on the beam.
The notch is created automatically when you pick the position.
Part identification key
| Description | |
|---|---|
|
1 |
Stiffener |
Picture tab
Use the Picture tab to control the geometry of the detail.

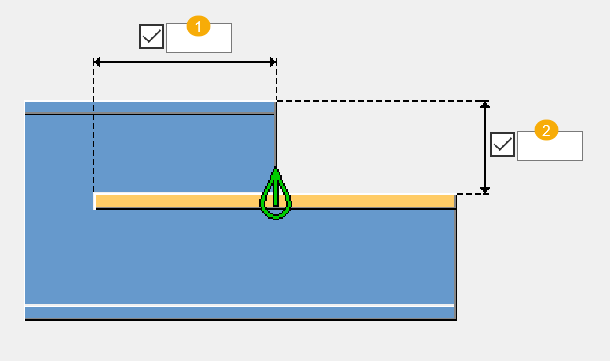

Stiffener position
| Description | |
|---|---|
|
1 |
Stiffener position from the notch edge. |
|
2 |
Stiffener position from the beam top. By default, this dimension is 100 mm. |
Parts tab
Use the Parts tab to define the part properties.
Parts
| Option | Description |
|---|---|
|
Stiffener |
Thickness and width of the stiffener. |
|
Option |
Description |
Default |
|---|---|---|
|
Pos_No |
Prefix and start number for the part position number. Some components have a second row of fields where you can enter the assembly position number. |
The default part start number is defined in the Components settings in . |
|
Material |
Material grade. |
The default material is defined in the Part material box in the Components settings in . |
|
Name |
Name that is shown in drawings and reports. |
|
|
Finish |
Describes how the part surface has been treated. |
General tab
Click the link below to find out more:
Analysis tab
Click the link below to find out more:
Welds
Click the link below to find out more:
